831-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 4POS 0.079 GOLD PCB

...

Part	Contact Shape	Contact Material	Contact Type	Contact Finish - Mating	Number of Rows	Insulation Height	Insulation Height	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]

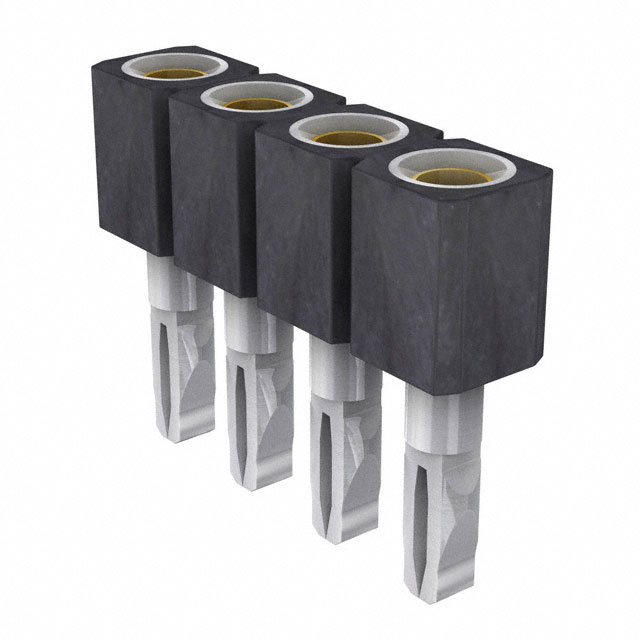

Preci-Dip 831-83-004-64-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.165 in	4.2 mm	Socket	Black	0.079 "	2 mm	All	Press-Fit Solder	UL94 V-0	3 A	Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	4	2.5 mm	0.098 in	Tin
Preci-Dip 831-83-014-40-001191	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Surface Mount	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	14			Tin
Preci-Dip 831-83-041-40-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Surface Mount	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	41			Tin
Preci-Dip 831-83-036-20-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	36			Tin	0.126 "	3.2 mm

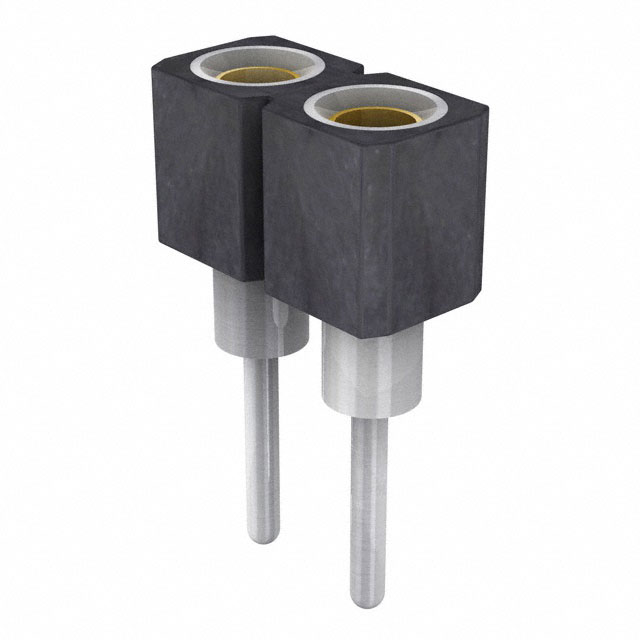

Preci-Dip 831-83-002-10-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.165 in	4.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	2	3.18 mm	0.125 in	Tin

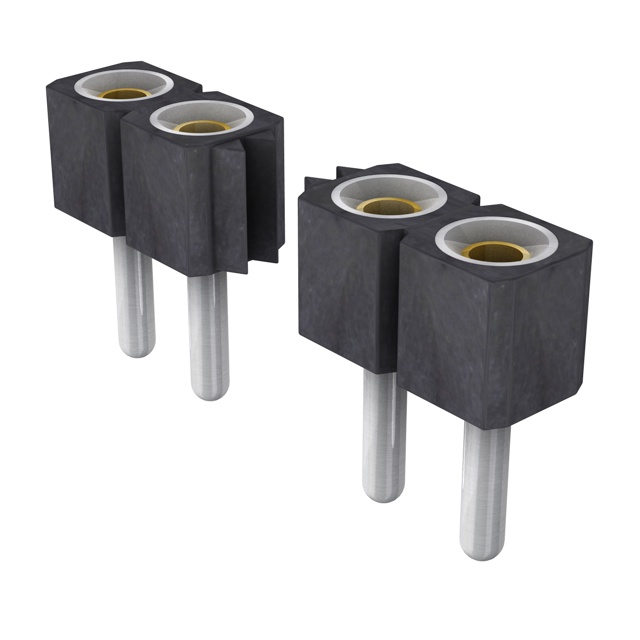

Preci-Dip 831-83-006-10-273101	Circular	Beryllium Copper	Female Socket	Gold	1			Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	6			Tin	0.122 in	3.1 mm
Preci-Dip 831-83-033-10-273101	Circular	Beryllium Copper	Female Socket	Gold	1			Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull				Tin	0.122 in	3.1 mm	33

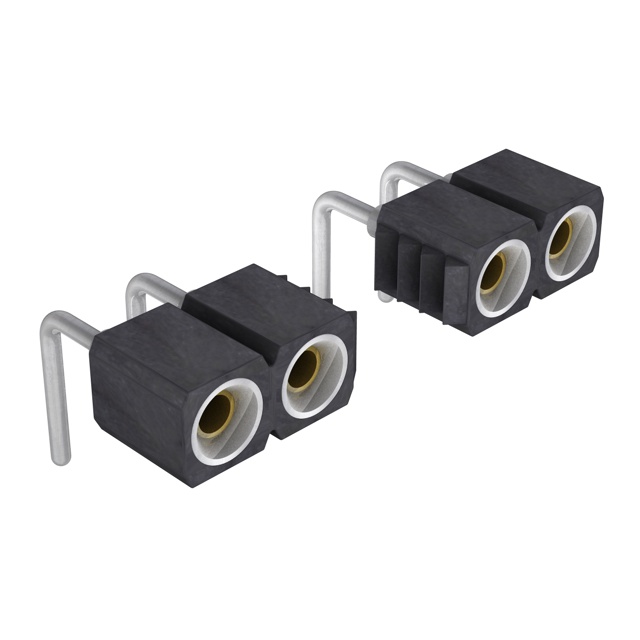

Preci-Dip 831-83-033-20-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Through Hole	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull				Tin	0.126 "	3.2 mm	33
Preci-Dip 831-83-015-40-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Surface Mount	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	15			Tin
Preci-Dip 831-83-044-40-001101	Circular	Beryllium Copper	Female Socket	Gold	1	0.087 "	2.2 mm	Socket	Black	0.079 "	2 mm	All	Solder	UL94 V-0	3 A	Right Angle Surface Mount	29.5 µin	0.75 µm	-55 C	125 °C	Push-Pull	44			Tin
