FF0881SA Series

Catalog

CONN FPC BOTTOM 81POS 0.2MM R/A

Part	Actuator Color	Current Rating (Amps)	Housing Color	Mating Cycles	Contact Material	Mounting Type	Housing Material	Actuator Material	FFC, FCB Thickness [custom]	Flat Flex Type	Cable End Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Pitch	Pitch	Voltage Rating	Contact Finish	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Termination	Number of Positions

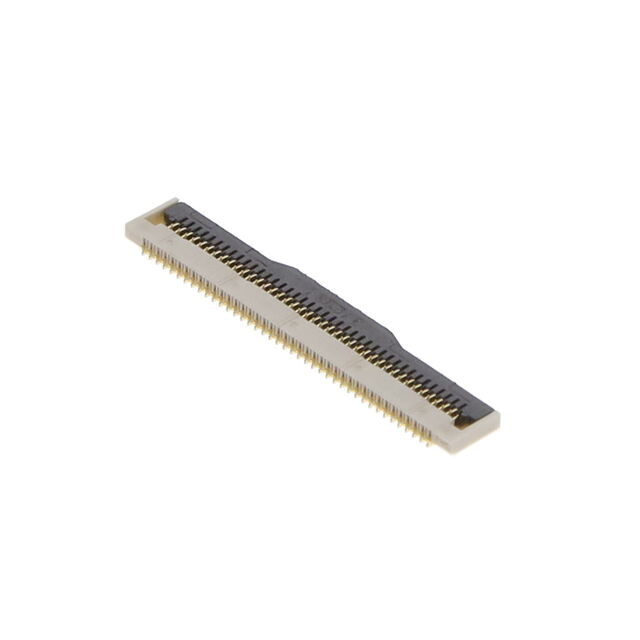

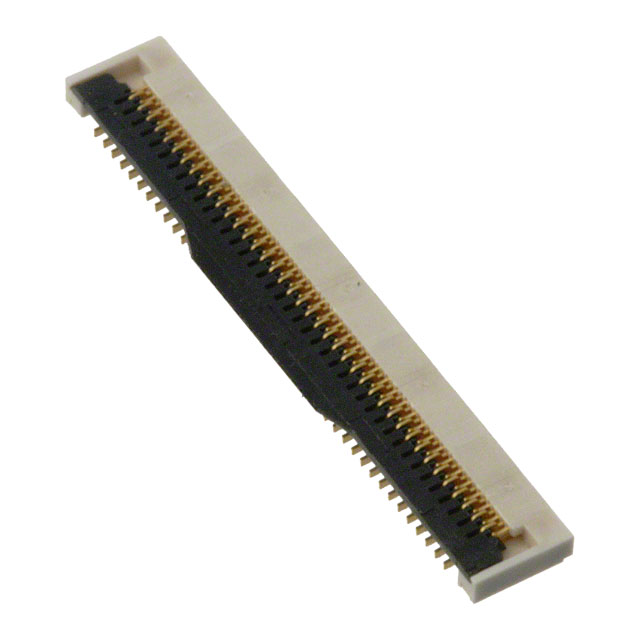

JAE Electronics FF0881SA1-R3000	Black	0.3 A	Beige	20	Copper Alloy	Right Angle Surface Mount	Plastic	Plastic	0.15 mm	FPC	Tabbed	UL94 V-0	85 °C	-40 C	Flip Lock	0.2 mm	0.008 in	50 V	Gold	Contacts Bottom	1 mm	0.039 "	Solder	81
JAE Electronics FF0881SA1	Black	0.3 A	Beige	20	Copper Alloy	Right Angle Surface Mount	Plastic	Plastic	0.15 mm	FPC	Tabbed	UL94 V-0	85 °C	-40 C	Flip Lock	0.2 mm	0.008 in	50 V	Gold	Contacts Bottom	1 mm	0.039 "	Solder	81
