Q2-F-1/8 Series

Manufacturer: Qualtek

Catalog

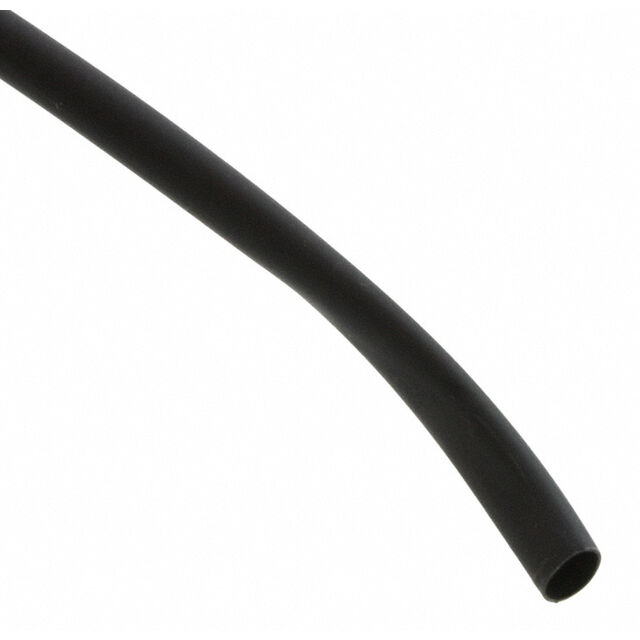

HEATSHRINK POLY Q2F 1/8" BLK 50'

Part	Length	Length	Type	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Shelf Life	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Spool Size [x]	Spool Size [x]	Length	Length [x]	Length [x]	Length [x]	Length
Qualtek Q2-F-1/8-01-QX50FT	50 ft	15.2 m	Tubing Flexible	-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	0.019 in	0.48 mm	70 °C	3.18 mm	0.125 in	1	2	Flame Retardant	144 Months	Polyolefin (PO)	0.062 in	1.57 mm	Black
Qualtek Q2-F-1/8-01-SS500FT	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 500 ft	19.05 mm 25.4 mm 38.1 mm 50.8 mm 101.6 mm 152.4 m 152.4 mm	Tubing Flexible	-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	0.019 in	0.48 mm	70 °C	3.18 mm	0.125 in	1	2	Flame Retardant	144 Months	Polyolefin (PO)	0.062 in	1.57 mm	Black	500 ft	152.4 m	0.75 " 1 " 1.5 in 2 in 4 in 6 "	0.25 ft 0.333 ft	76.2 mm	3 in	Enter Number of Feet in Order Quantity
Qualtek Q2-F-1/8-01-QB48IN-25			Tubing Flexible	-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	0.019 in	0.48 mm	70 °C	3.18 mm	0.125 in	1	2	Flame Retardant	144 Months	Polyolefin (PO)	0.062 in	1.57 mm	Black				4 ft	1.22 m
Qualtek Q2-F-1/8-01-MS100FT			Tubing Flexible	-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	0.019 in	0.48 mm	70 °C	3.18 mm	0.125 in	1	2	Flame Retardant	144 Months	Polyolefin (PO)	0.062 in	1.57 mm	Black				100 ft	30.5 m
