9043-1533 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

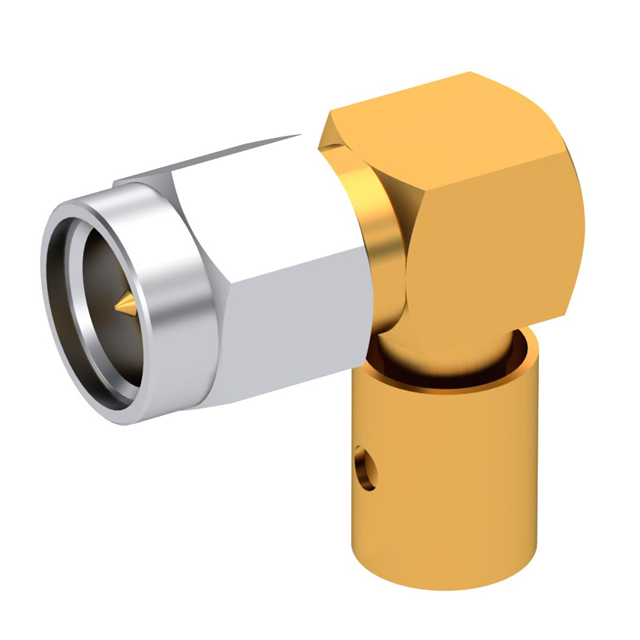

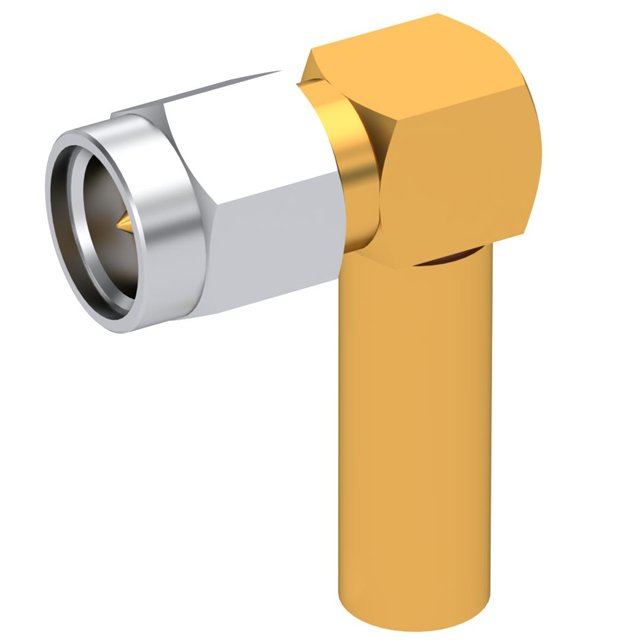

SMA / RIGHT ANGLE PLUG MALE SOLD
| Part | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Number of Ports | Housing Color | Cable Group | Impedance | Connector Style | Mounting Type | Fastening Type | Center Contact Material | Contact Termination | Frequency - Max [Max] | Shield Termination | Connector Type | Voltage Rating | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | Stainless Steel | 1 | Gold | 188 316 RG-174 | 50 Ohms | SMA | Free Hanging (In-Line) Right Angle | Threaded | Beryllium Copper | Crimp | 12.4 GHz | Crimp | Plug Male Pin | ||
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | Stainless Steel | 1 | Gold | RG-180 | 50 Ohms | SMA | Free Hanging (In-Line) Right Angle | Threaded | Beryllium Copper | Solder | 18 GHz | Crimp | Plug Male Pin | ||
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | Stainless Steel | 1 | Gold | RG-178 | 50 Ohms | SMA | Free Hanging (In-Line) Right Angle | Threaded | Brass | Crimp Solder | 12.4 GHz | Crimp | Plug Male Pin | 170 V | 196 |
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | Stainless Steel | 1 | Gold | RG-316 Double Braid | 50 Ohms | SMA | Free Hanging (In-Line) Right Angle | Threaded | Beryllium Copper | Crimp Solder | 12.4 GHz | Crimp | Plug Male Pin | 250 V |
