SFSA008 Series

Manufacturer: SWISSBIT

Catalog

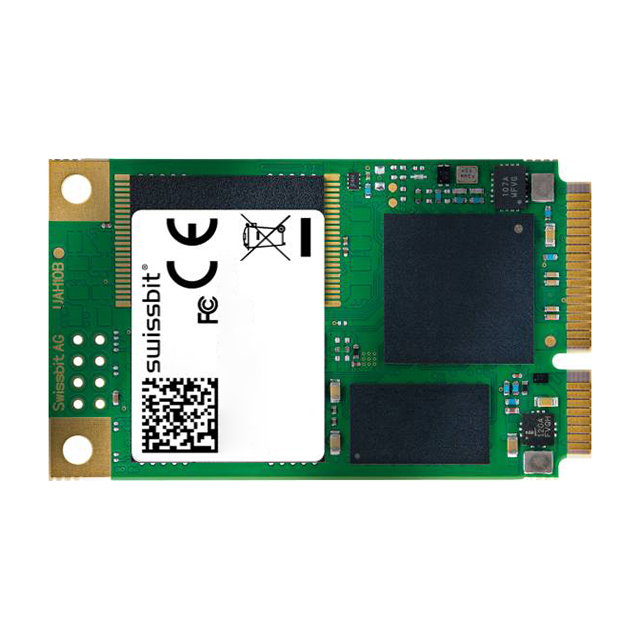

SSD 8GB MSATA MLC SATA III 3.3V

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Supply	Speed - Write	Memory Size	Current - Max [Max]	Speed - Read	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor

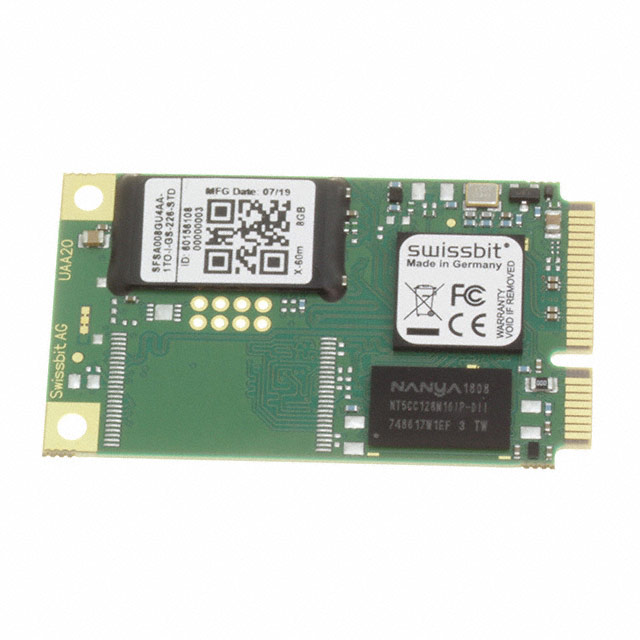

SWISSBIT SFSA008GU4AA1TO-I-GS-226-STD	SATA III	2 in	29.85 mm	3.3 mm	3.3 V	450 MB/s	8 GB	960 mA	520 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 C	mSATA
SWISSBIT SFSA008GM3AA1TO-C-DB-126-STD	SATA III	42 mm	22 mm	3.58 mm	3.3 V	65 MB/s	8 GB		245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	70 °C	0 °C	M.2 Module
SWISSBIT SFSA008GU1AA1TO-I-DB-216-STD	SATA III	2 in	29.85 mm	3.5 mm	3.3 V	65 MB/s	8 GB	260 mA	245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	85 °C	-40 C	mSATA
SWISSBIT SFSA008GU3AA1TO-C-DB-226-STD	SATA III	2 in	29.85 mm	3.5 mm	3.3 V	65 MB/s	8 GB		245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	70 °C	0 °C	mSATA
SWISSBIT SFSA008GU4AA2TO-C-GS-22P-STD	SATA III	2 in	29.85 mm	3.3 mm	3.3 V	450 MB/s	8 GB	610 mA	520 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	70 °C	0 °C	mSATA
SWISSBIT SFSA008GU3AA1TO-I-DB-226-STD	SATA III	2 in	29.85 mm	3.5 mm	3.3 V	65 MB/s	8 GB		245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	85 °C	-40 C	mSATA
SWISSBIT SFSA008GU2AA1TO-C-GS-216-STD	SATA III	2 in	29.85 mm	3.5 mm	3.3 V	25 MB/s	8 GB	210 mA	145 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	mSATA
SWISSBIT SFSA008GU4AA1TO-C-GS-226-STD	SATA III	2 in	29.85 mm	3.3 mm	3.3 V	450 MB/s	8 GB	960 mA	520 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	mSATA
SWISSBIT SFSA008GU1AA1TO-C-DB-216-STD	SATA III	2 in	29.85 mm	3.5 mm	3.3 V	65 MB/s	8 GB	260 mA	245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	70 °C	0 °C	mSATA
SWISSBIT SFSA008GM1AA1TO-C-DB-216-STD	SATA III	42 mm	22 mm	3.3 mm	3.3 V	65 MB/s	8 GB	255 mA	245 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	70 °C	0 °C	M.2 Module
