FDMC8032L Series

Dual N-Channel PowerTrench® MOSFET 40V, 7A, 20mΩ

Catalog

Dual N-Channel PowerTrench® MOSFET 40V, 7A, 20mΩ

Part	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Power - Max [Max]	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Technology	FET Feature	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Package / Case	Vgs(th) (Max) @ Id	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C
ON Semiconductor FDMC8032L	-55 °C	150 °C	2 N-Channel (Dual)	1.9 W	40 V	20 mOhm	MOSFET (Metal Oxide)	Logic Level Gate	720 pF	11 nC	Surface Mount	8-PowerWDFN	3 V	8-Power33 (3x3)	7 A

Catalog

Dual N-Channel PowerTrench® MOSFET 40V, 7A, 20mΩ

Key Features

• Max rDS(on)= 20 mΩ at VGS= 10 V, ID= 7 A

• Max rDS(on)= 27 mΩ at VGS= 4.5 V, ID= 6 A

• Low Inductance Packaging Shortens Rise/Fall Times

• Lower Switching Losses

• 100% RgTested

• Termination is Lead-free and RoHS Compliant

Description

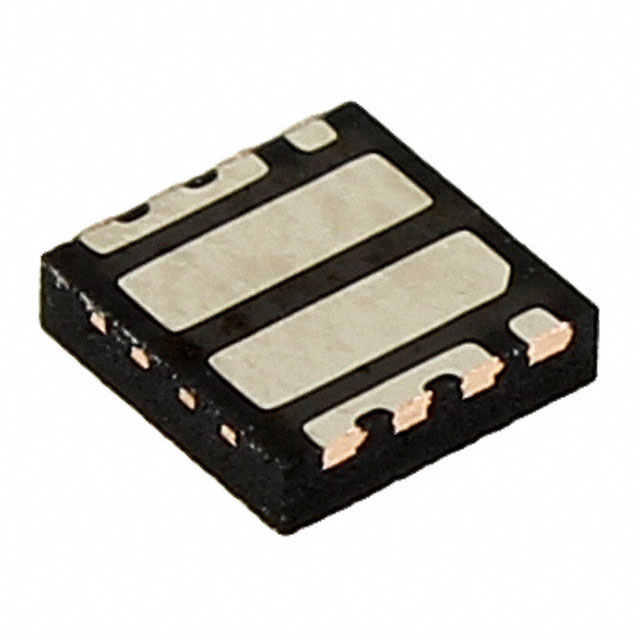

This device includes two 40V N-Channel MOSFETs in a dual Power 33 (3 mm X 3 mm MLP) package. The package is enhanced for exceptional thermal performance.
