794305 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

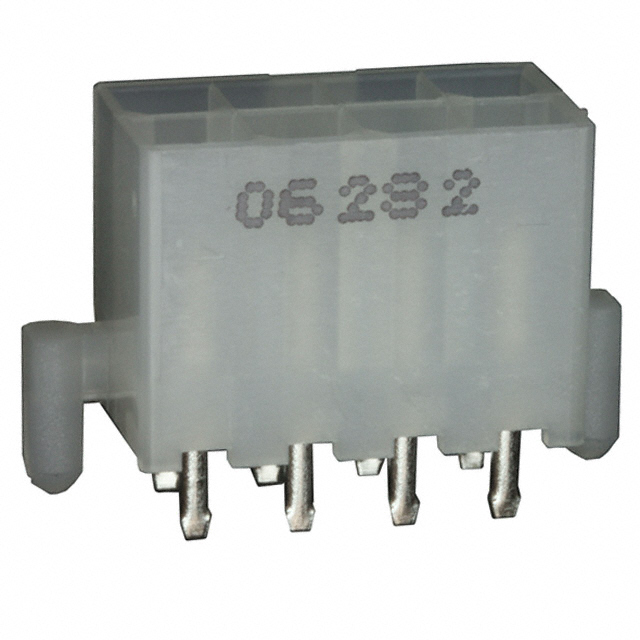

CONN HEADER VERT 8POS 4.2MM
| Part | Pitch - Mating | Pitch - Mating | Contact Shape | Style | Connector Type | Material Flammability Rating | Contact Material | Insulation Color | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Voltage Rating | Number of Positions | Mounting Type | Insulation Material | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Features | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Shrouding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.165 in | 4.2 mm | Square | Board to Board Cable | Header | UL94 V-2 | Copper Alloy | Natural | 0.138 in | 3.5 mm | -55 C | 105 ░C | Tin | 600 VAC | 8 | Through Hole | Nylon Polyamide (PA) | 12.8 mm | 0.504 " | All | Board Lock | 0.165 in | 4.2 mm | Male Pin | Locking Ramp | 118.1 µin | 3 µm | 2 | Shrouded - 4 Wall | Solder |
