0MIN005.MXGLO Series

Fuse - Mini SmartGlow 32VDC 5A 1000 pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - Mini SmartGlow 32VDC 5A 1000 pc

Part	Voltage Rating - DC	Package / Case	Mounting Type	Color	Approval Agency	Fuse Type	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Response Time	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 0MIN005.MXGLO	32 V	Blade Miniature	Requires Holder	Tan	SAE UL	Automotive	32 V	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	Fast Blow	5 A

Catalog

Fuse - Mini SmartGlow 32VDC 5A 1000 pc

Key Features

• Tan housing indicates 5 A rating

• Tin-plated zinc alloy terminals

• Complies with SAE J2077 and ISO 8820-3

• UL Listed

Description

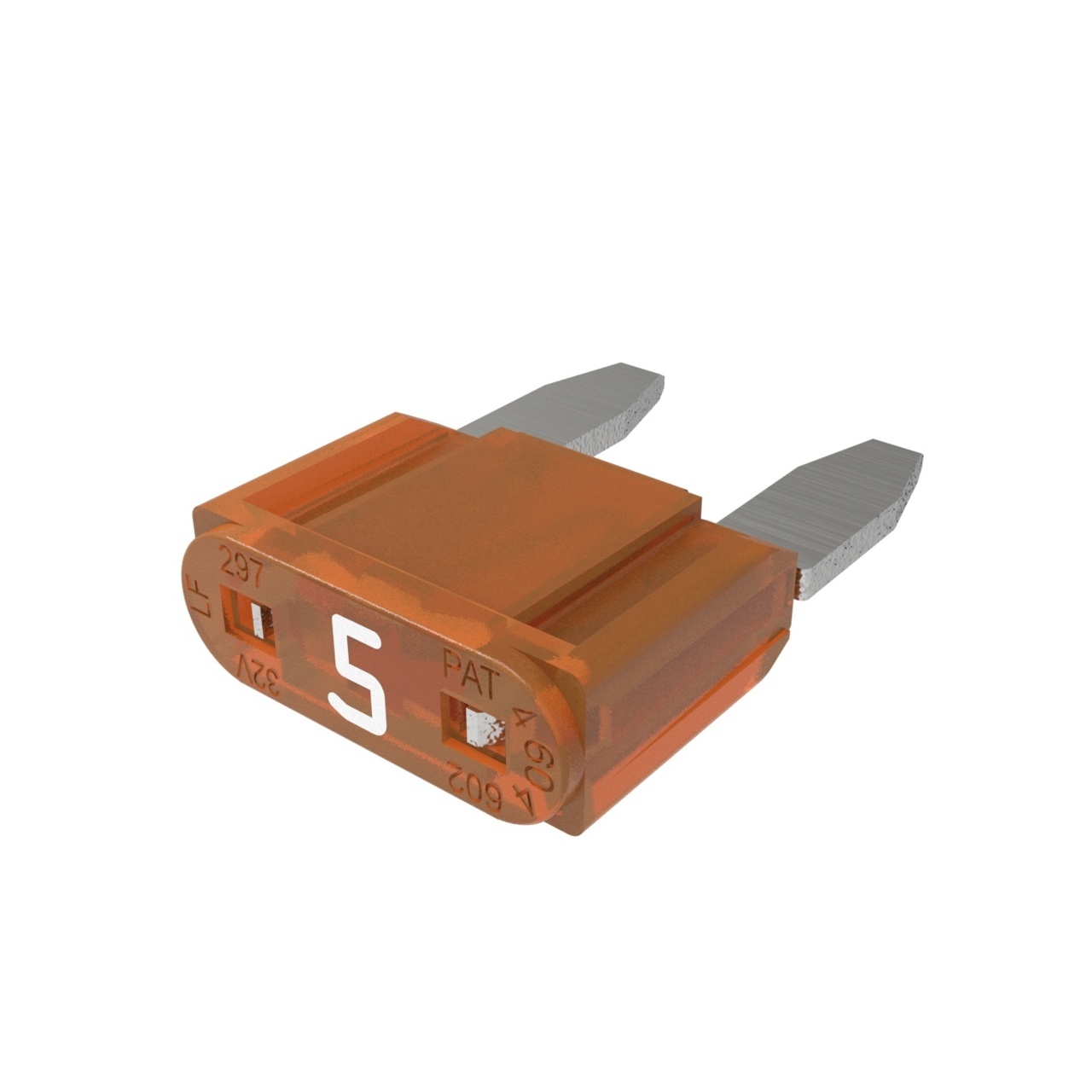

This 5 A MINI® Smart Glow blade fuse features an LED light that comes on to show when the fuse blows. Despite its miniature design and light weight, the MINI fuse performs reliably in adverse environments and at extreme temperatures.
