2317224 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,REC,IDC,LATCH,26-30,STRI

Part	Contact Finish	Wire Type	Cable Termination	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Color	Mounting Type	Number of Positions	Number of Rows
TE Connectivity Raychem Cable Protection 1-2317224-2	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	12	1

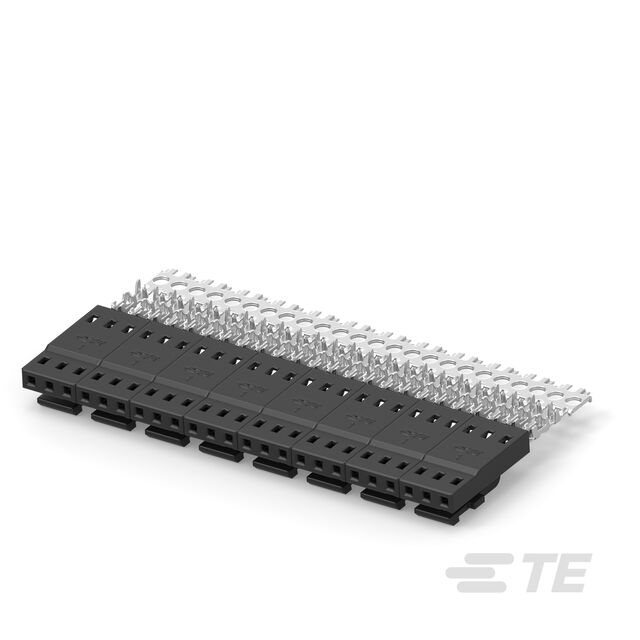

TE Connectivity Raychem Cable Protection 2317224-3	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)		1
TE Connectivity Raychem Cable Protection 2317224-6	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	6	1

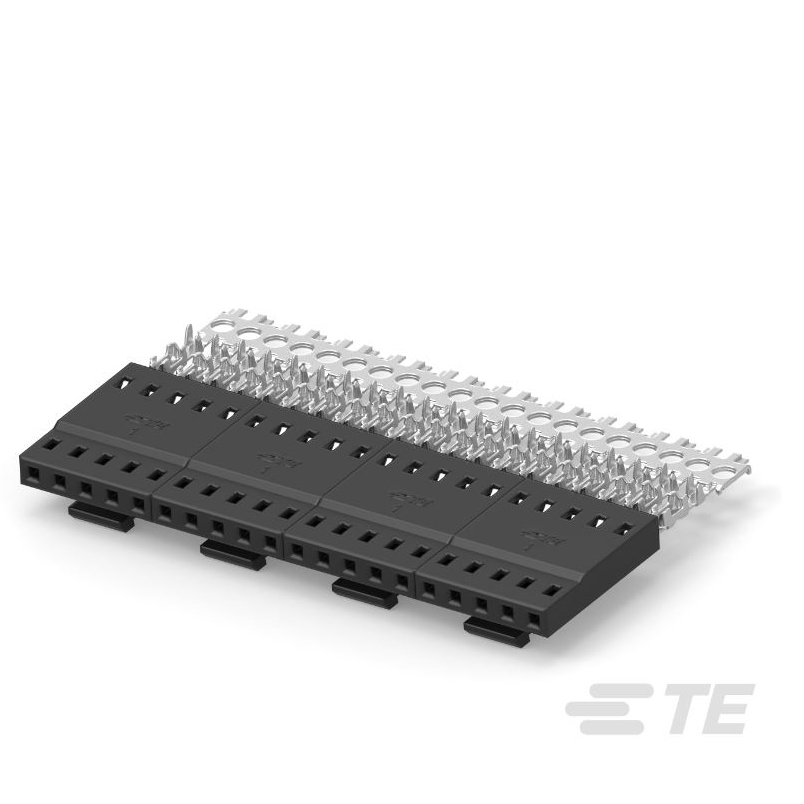

TE Connectivity Raychem Cable Protection 2317224-5	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)		1
TE Connectivity Raychem Cable Protection 2317224-8	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	8	1

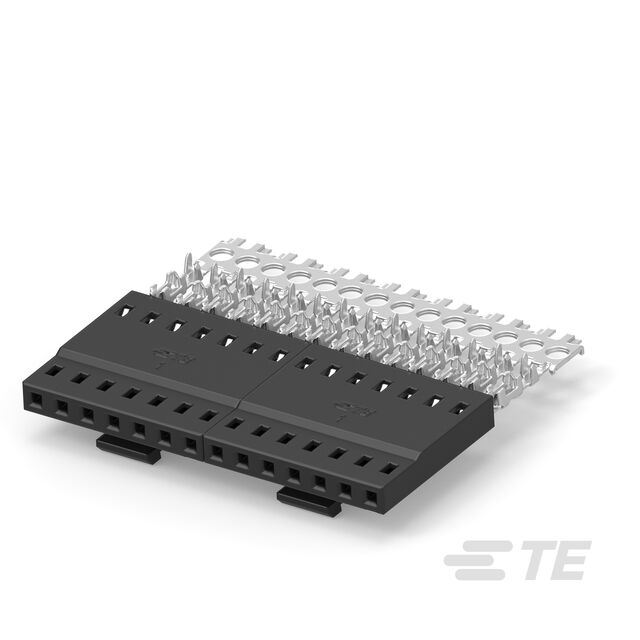

TE Connectivity Raychem Cable Protection 2317224-7	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	7	1

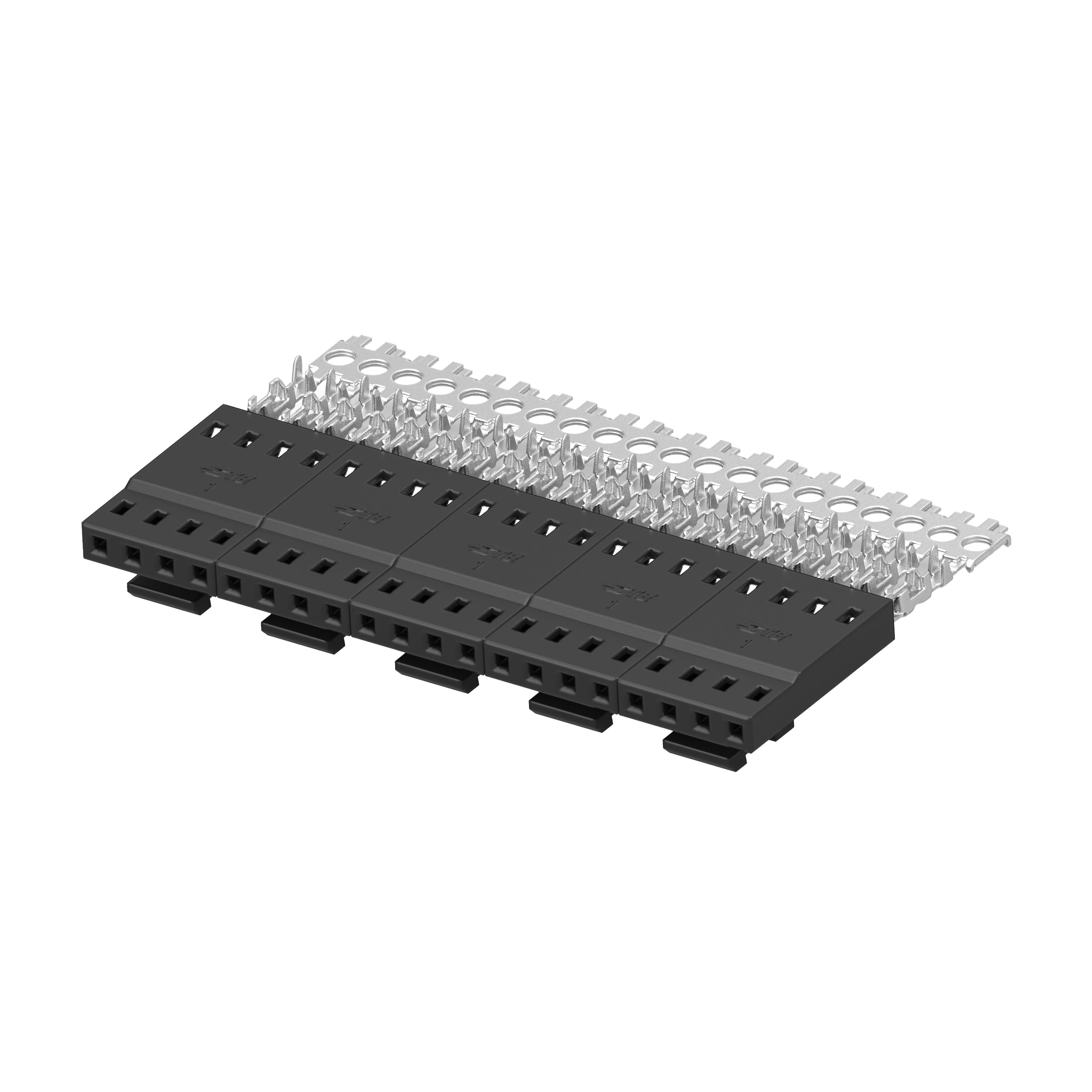

TE Connectivity Raychem Cable Protection 2317224-4	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	4	1
TE Connectivity Raychem Cable Protection 2317224-9	Tin	Discrete or Ribbon Cable	IDC	0.079 in	2 mm	Receptacle	Latch Lock	26 AWG	30 AWG	50 µin	1.27 µm	Female Socket	Black	Free Hanging (In-Line)	9	1
