RSD-500 Series

Catalog

DC/DC CONVERTER 12V 420W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Approval Agency	Power (Watts)	Voltage - Isolation	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage - Output 1
MEAN WELL USA Inc. RSD-500C-12	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	420 W	4000 V	33.6 V	ITE (Commercial) Railway	1	35 A	Enclosed	67.2 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	12 V
MEAN WELL USA Inc. RSD-500B-48	80 ¯C	-40 °C	92 %	CB CE cURus EAC RCM	422 W	4000 V	16.8 V	ITE (Commercial) Railway	1	8.8 A	Enclosed	33.6 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	48 V
MEAN WELL USA Inc. RSD-500C-48	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	461 W	4000 V	33.6 V	ITE (Commercial) Railway	1	9.6 A	Enclosed	67.2 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	48 V
MEAN WELL USA Inc. RSD-500B-24	80 ¯C	-40 °C	92 %	CB CE cURus EAC RCM	420 W	4000 V	16.8 V	ITE (Commercial) Railway	1	17.5 A	Enclosed	33.6 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	24 V
MEAN WELL USA Inc. RSD-500C-24	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	461 W	4000 V	33.6 V	ITE (Commercial) Railway	1	19.2 A	Enclosed	67.2 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	24 V

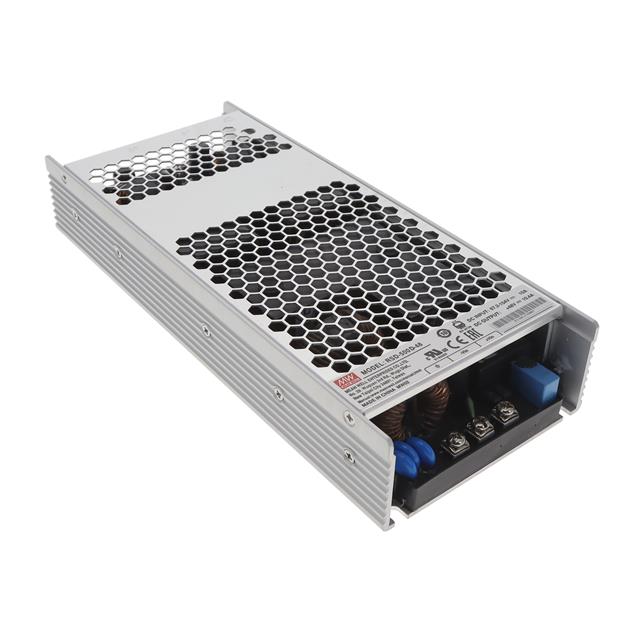

MEAN WELL USA Inc. RSD-500D-48	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	499 W	4000 V	67.2 V	ITE (Commercial) Railway	1	10.4 A	Enclosed	154 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	48 V
MEAN WELL USA Inc. RSD-500D-24	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	499 W	4000 V	67.2 V	ITE (Commercial) Railway	1	20.8 A	Enclosed	154 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	24 V
MEAN WELL USA Inc. RSD-500D-12	80 ¯C	-40 °C	93 %	CB CE cURus EAC RCM	420 W	4000 V	67.2 V	ITE (Commercial) Railway	1	35 A	Enclosed	154 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	12 V
MEAN WELL USA Inc. RSD-500B-12	80 ¯C	-40 °C	92 %	CB CE cURus EAC RCM	420 W	4000 V	16.8 V	ITE (Commercial) Railway	1	35 A	Enclosed	33.6 V	1.61 "	237 mm	41 mm	3.94 in	9.33 in	100 mm	Chassis Mount	12 V
