179-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

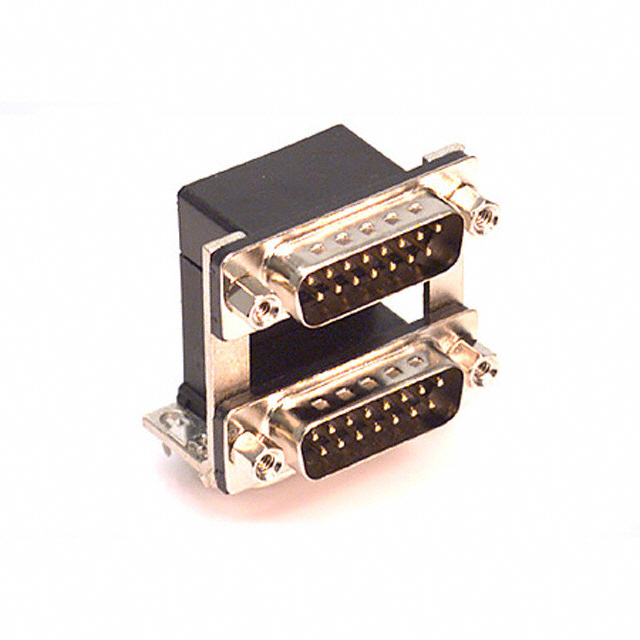

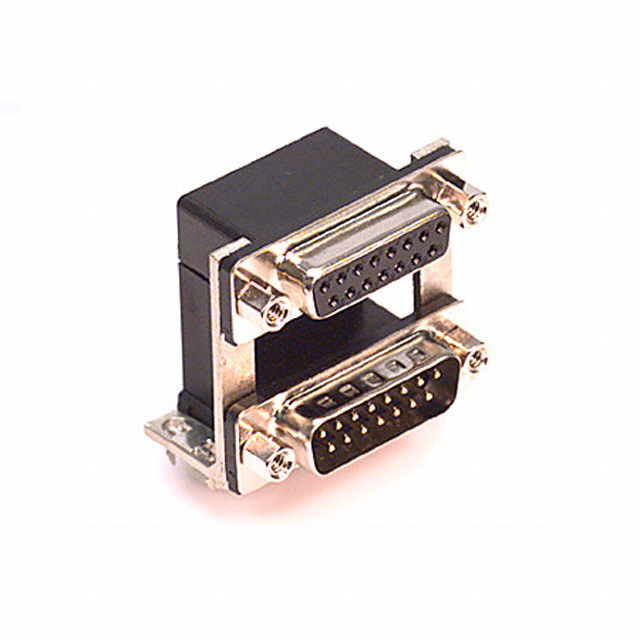

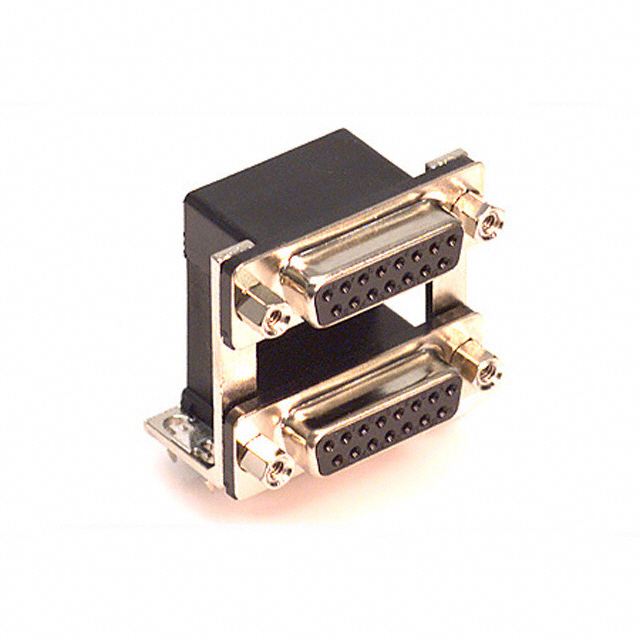

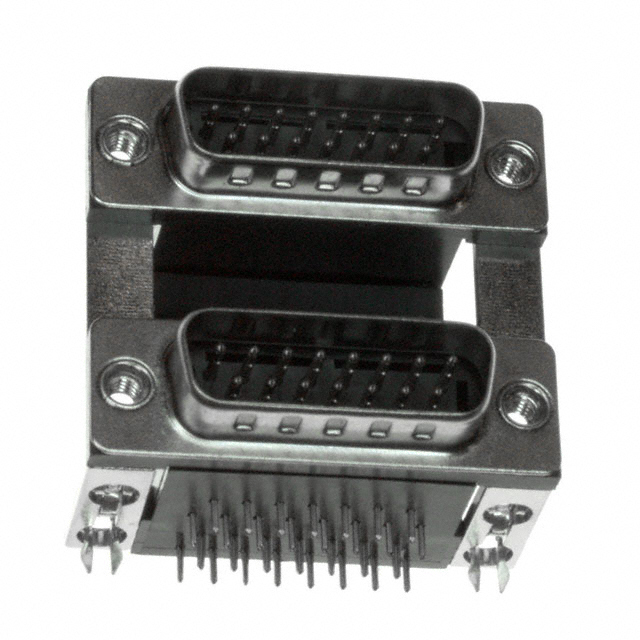

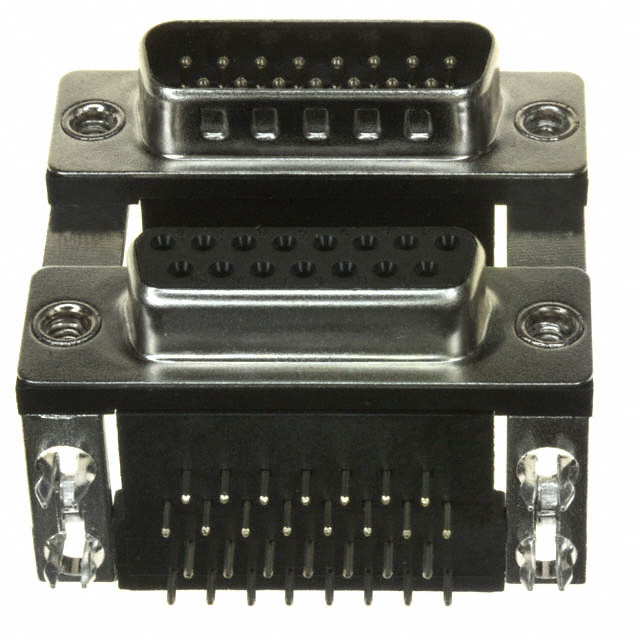

CONN D-SUB PLUG/RCPT 15P RA SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Form | Contact Material | Dielectric Material | Connector Style | Number of Rows [custom] | Contact Finish Thickness | Contact Type | Mounting Type | Backset Spacing | Backset Spacing | Number of Positions | Number of Positions | Features | Termination | Material Flammability Rating | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Flange Feature | Contact Finish | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Polyester Glass Filled | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Grounding Indents | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | ||
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Polyester Glass Filled | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Grounding Indents | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | ||
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Grounding Indents Shielded | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | Housing/Shell | Gold | Nickel Plated Steel | 4-40 |
NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Grounding Indents Shielded | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | Nickel Plated Steel | |
NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Grounding Indents Shielded | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | Housing/Shell | Gold | Nickel Plated Steel | 4-40 |
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Grounding Indents Shielded | Solder | UL94 V-0 | Plug Male Pins | 2 | 2 | 5 A | Housing/Shell | Gold | Nickel Plated Steel | 4-40 |
NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Shielded | Solder | UL94 V-0 | Receptacle Female Sockets | 2 | 2 | 5 A | Housing/Shell | Gold | Nickel Plated Steel | 4-40 |
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock Shielded | Solder | UL94 V-0 | Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | Nickel Plated Steel | |
 NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Polyester Glass Filled | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Board Lock | Solder | UL94 V-0 | Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | ||
NorComp Inc. | -55 C | 105 ░C | Black | Stamped | Brass | Nylon 9T Polyamide (PA9T) | D-Sub - Stacked | 2 | Flash | Signal | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | 15 | 15 | Grounding Indents Shielded | Solder | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 2 | 2 | 5 A | 4-40 Mating Side Female Screwlock | Gold | Nickel Plated Steel |
