222K132 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT 90DEG SZ32 BLK

Part	Shell Size - Insert	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Total Length Recovered	Total Length Recovered	Type	Large Recovered Length	Large Recovered Length	Color	Large Diameter Supplied	Large Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length	Small Recovered Length [x]	Small Recovered Length [x]	Large Diameter Recovered [diameter]

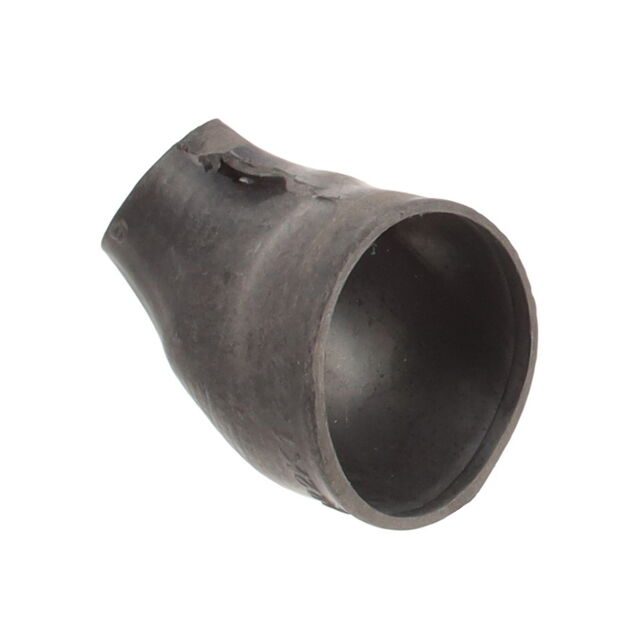

TE Connectivity Aerospace, Defense and Marine 222K132-100-0	32	0.232 "	5.89 mm	Polyolefin (PO) Semi-Flexible	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in	0.559 in	14.2 mm	15.01 mm	0.591 in	20.07 mm	0.79 in
TE Connectivity Aerospace, Defense and Marine 222K132-12-CS-2094-0	32	0.23 "	5.84 mm	Fluoroelastomer (FKM) Flexible	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in		0.56 in	14.99 mm	0.59 in			8.38 mm	0.33 in	14.22 mm
TE Connectivity Aerospace, Defense and Marine 222K132-12-00-0	32	0.23 "	5.84 mm	Fluoroelastomer (FKM) Flexible	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in		0.56 in	14.99 mm	0.59 in			8.38 mm	0.33 in	14.22 mm
TE Connectivity Aerospace, Defense and Marine 222K132-25-00-0	32	0.23 "	5.84 mm	Elastomer Fluid Resistant	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in		0.56 in	14.99 mm	0.59 in	20.07 mm	0.79 in			14.22 mm
TE Connectivity Aerospace, Defense and Marine 222K132-25-CS-1858-0	32	0.23 "	5.84 mm	Elastomer Fluid Resistant	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in		0.56 in	14.99 mm	0.59 in	20.07 mm	0.79 in			14.22 mm
TE Connectivity Aerospace, Defense and Marine 222K132-12-0	32	0.232 "	5.89 mm	Fluoroelastomer (FKM) Flexible	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in	0.559 in	14.2 mm	15.01 mm	0.591 in	20.07 mm	0.79 in
TE Connectivity Aerospace, Defense and Marine 222K132-100-CS-2065-0	32	0.23 "	5.84 mm	Polyolefin (PO) Semi-Flexible Halogen Free	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in		0.56 in	14.99 mm	0.59 in	20.07 mm	0.79 in			14.22 mm
TE Connectivity Aerospace, Defense and Marine 222K132-100/86-0	32	0.232 "	5.89 mm	Zerohal™	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in	0.559 in	14.2 mm	15.01 mm	0.591 in	20.07 mm	0.79 in
TE Connectivity Aerospace, Defense and Marine 222K132-3-0	32	0.232 "	5.89 mm	Polyolefin (PO) Semi-Rigid	32 mm	1.26 in	Boot - 90°	26.92 mm	1.06 in	Black	29.97 mm	1.18 in	0.559 in	14.2 mm			20.07 mm	0.79 in
