787419 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

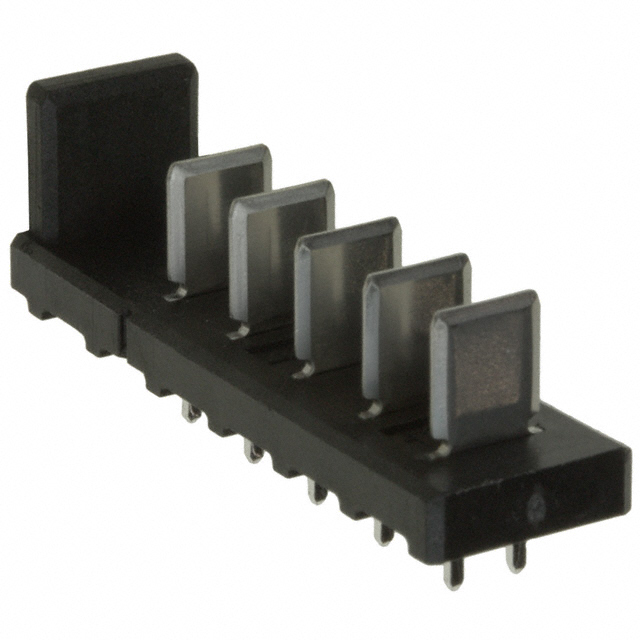

CONN HDR 5POS 5.00MM PCB SLDR
| Part | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Current Rating (Amps) | Contact Finish | Fastening Type | Connector Style | Features | Pitch | Pitch | Number of Positions | Number of Rows | Termination | Mounting Type | Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyphthalamide (PPA) | Brass | 1.9 µm | 74.8 µin | -30 ░C | 70 °C | 10.8 V | 7 A | Nickel | Push-Pull | 10.8V Battery | Board Guide Right Hand Keying | 0.197 in | 5 mm | 5 | 1 | Solder | Through Hole | Header Male Blades | Black |
