TG-AL375 Series

Catalog

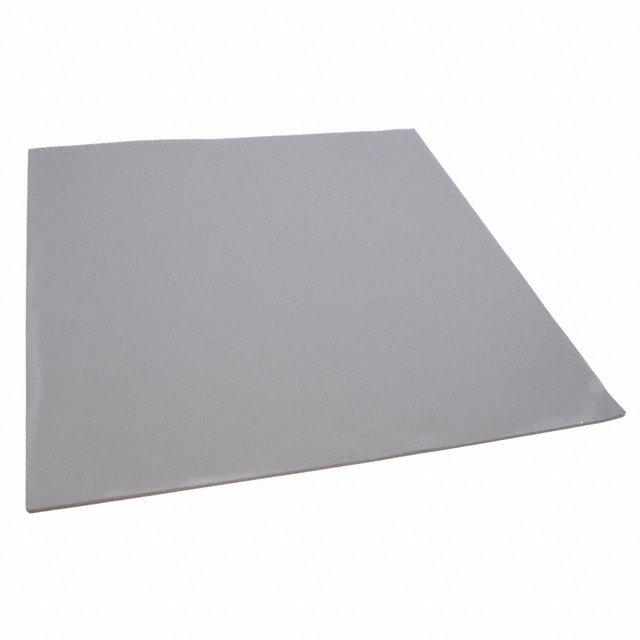

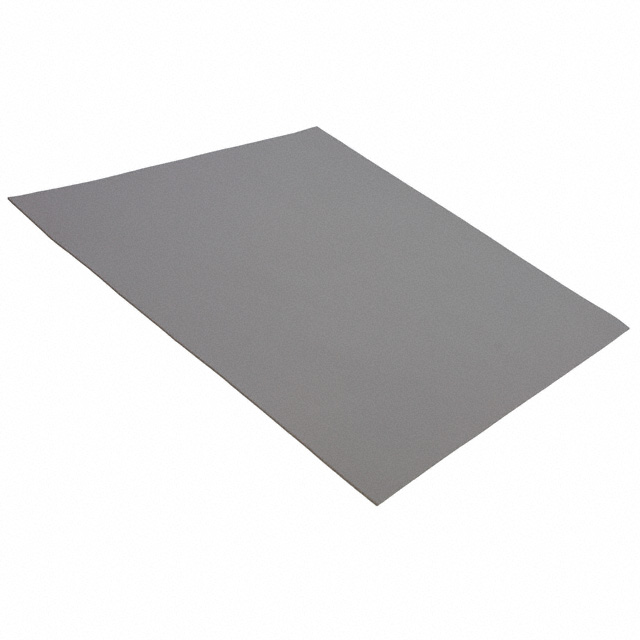

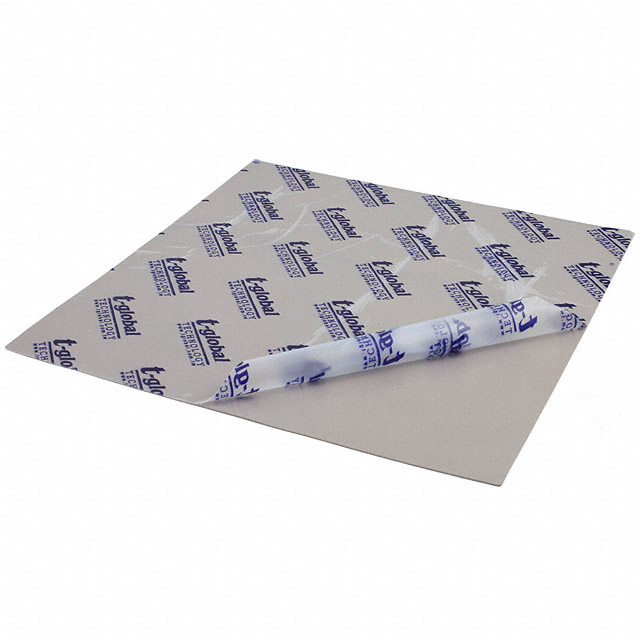

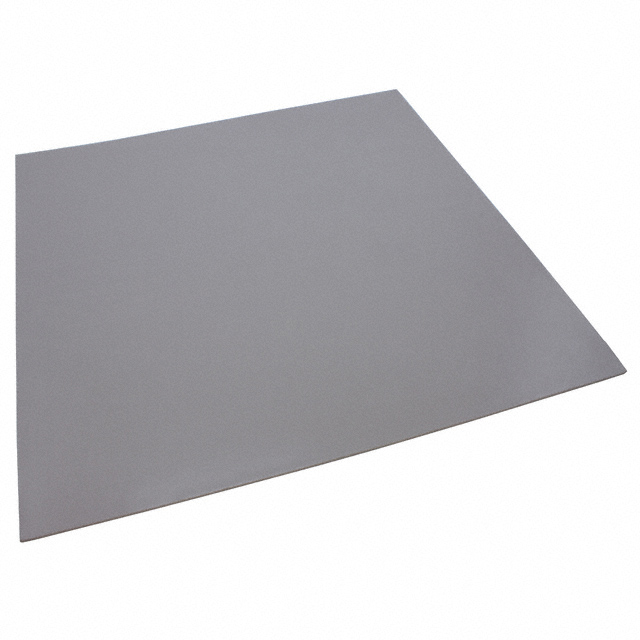

THERM PAD 300MMX300MM W/ADH GRAY

Part	Shelf Life	Thermal Conductivity	Shape	Color	Adhesive	Type	Outline [y]	Outline [x]	Thickness	Thickness
t-Global Technology TG-AL375-300-300-1.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	300 mm	300 mm	0.0394 "	1 mm
t-Global Technology TG-AL375-300-300-1.0-0	24 Months	1.6 W/m-K	Square	Gray		Conductive Pad Sheet	300 mm	300 mm	0.0394 "	1 mm
t-Global Technology TG-AL375-300-300-2.0-0	24 Months	1.6 W/m-K	Square	Gray		Conductive Pad Sheet	300 mm	300 mm	0.079 in	2 mm
t-Global Technology TG-AL375-100-100-1.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	100 mm	100 mm	0.0394 "	1 mm
t-Global Technology TG-AL375-320-320-2.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	320 mm	320 mm	0.079 in	2 mm
t-Global Technology TG-AL375-100-100-5.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	100 mm	100 mm	0.197 in	5 mm
t-Global Technology TG-AL375-300-300-0.5-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	300 mm	300 mm	0.0197 "	0.5 mm
t-Global Technology TG-AL375-300-300-2.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	300 mm	300 mm	0.079 in	2 mm
t-Global Technology TG-AL375-300-300-10.0-0	24 Months	1.6 W/m-K	Square	Gray		Conductive Pad Sheet	300 mm	300 mm	0.394 "	10 mm
t-Global Technology TG-AL375-100-100-3.0-1A	12 Months	1.6 W/m-K	Square	Gray	Adhesive - One Side	Conductive Pad Sheet	100 mm	100 mm	0.118 in	3 mm
