TPS62085 Series
Manufacturer: Texas Instruments
Beta
⌘K
3-A STEP-DOWN CONVERTER WITH DCS-CONTROL AND HICCUP SHORT CIRCUIT PROTECTION IN 2X2 HOTROD PACKAGE
| Part | Output Configuration | Mounting Type | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Current - Output | Voltage - Input (Max) [Max] | Topology | Package / Case | Function | Output Type | Frequency - Switching | Synchronous Rectifier | Number of Outputs | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Regulator Topology | Main Purpose | Voltage - Output | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

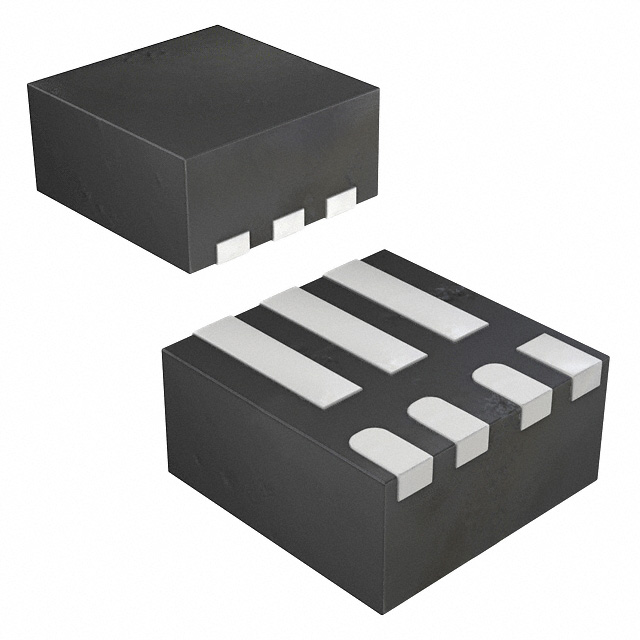

 Texas Instruments | Positive | Surface Mount | 0.8 V | 2.5 V | -40 C | 125 °C | 7-VSON-HR (2x2) | 3 A | 6 V | Buck | 7-VFDFN | Step-Down | Adjustable | 2.4 MHz | 1 | ||||||||||||

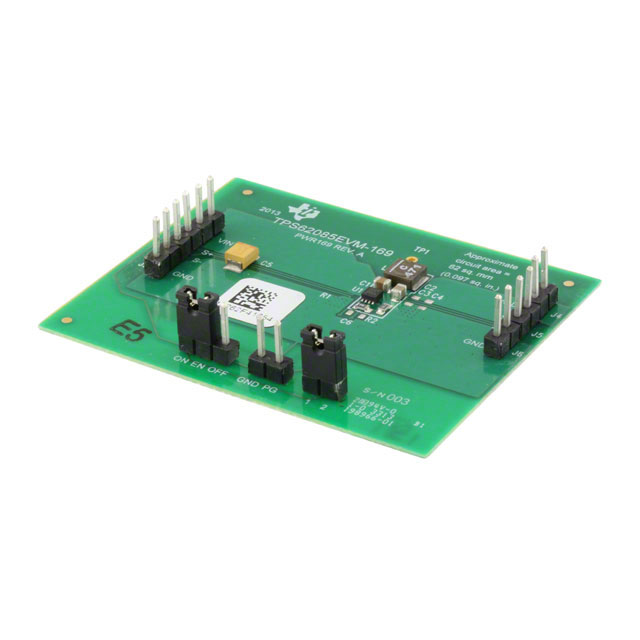

 Texas Instruments | 3 A | 2.4 MHz | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | Buck | DC/DC Step Down | 1.2 V | Board(s) | 6 V | 2.5 V | TPS62085 | ||||||||||||||
 Texas Instruments | Positive | Surface Mount | 0.8 V | 2.5 V | -40 C | 125 °C | 7-VSON (2x2) | 3 A | 6 V | Buck | 7-VFDFN | Step-Down | Adjustable | 2.4 MHz | 1 |
