SM141 Series

Catalog

MONOCRYST SOLAR CELL 307MW 6.91V

Part	Voltage @ Pmpp	Current @ Pmpp	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Current - Short Circuit (Isc)	Power (Watts) - Max [Max]	Voltage - Open Circuit	Size / Dimension [z]	Size / Dimension [y]

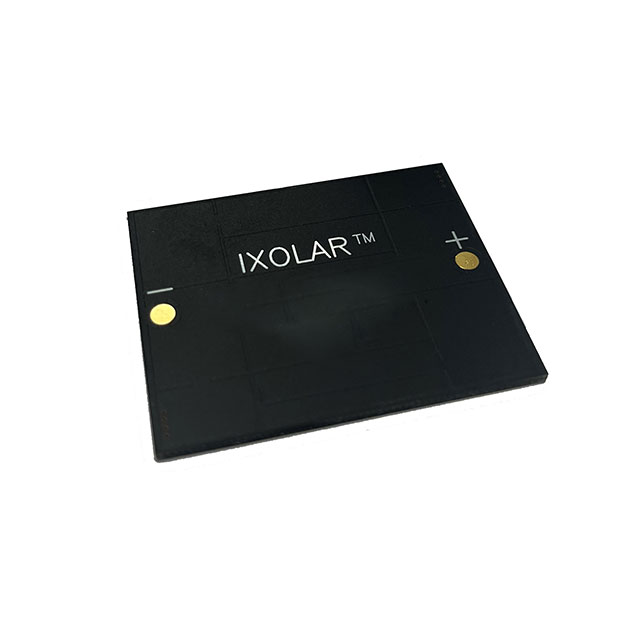

ANYSOLAR Ltd SM141K10LV	5.58 V	55.1 mA	Monocrystalline	90 °C	-40 C	1.417 "	36 mm	1.772 in	45 mm	1.8 mm	0.071 in	Cells	58.6 mA	307 mW

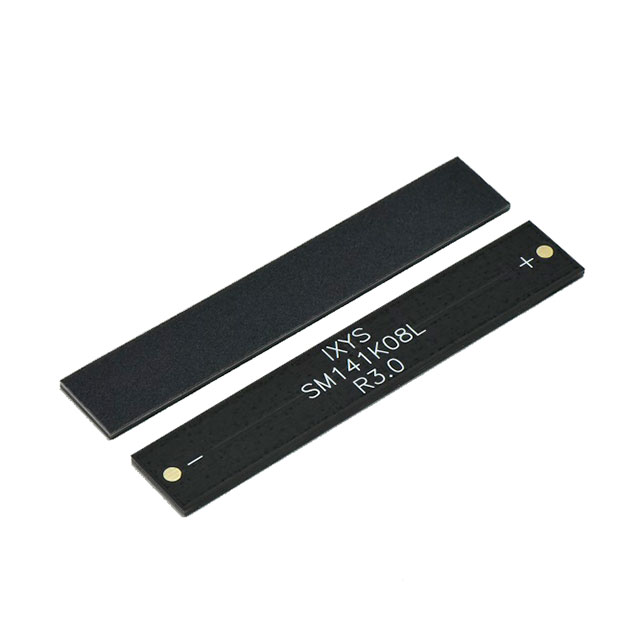

ANYSOLAR Ltd SM141K08L	4.46 V	55.1 mA	Monocrystalline	90 °C	-40 C	0.591 in	15 mm	3.465 in	88 mm	2.1 mm	0.083 "	Cells	58.6 mA	246 mW	5.53 V

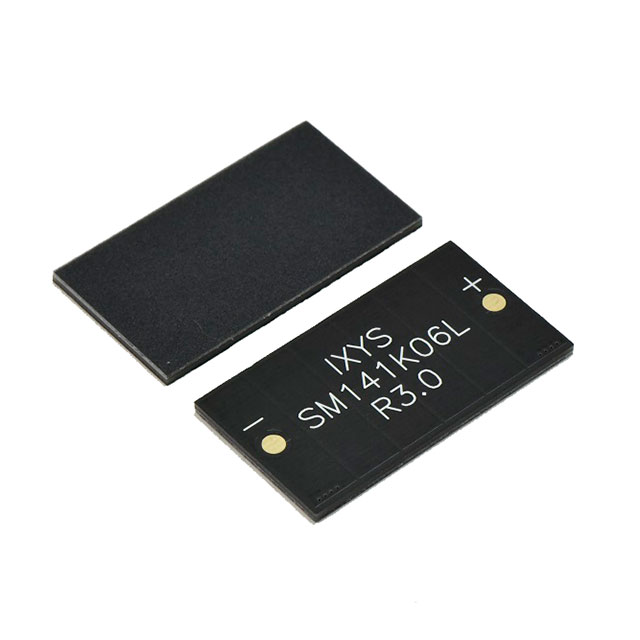

ANYSOLAR Ltd SM141K06L	3.35 V	55.1 mA	Monocrystalline	90 °C	-40 C	0.906 in	23 mm	1.654 in	42 mm	2.1 mm	0.083 "	Cells	58.6 mA	184 mW	4.15 V

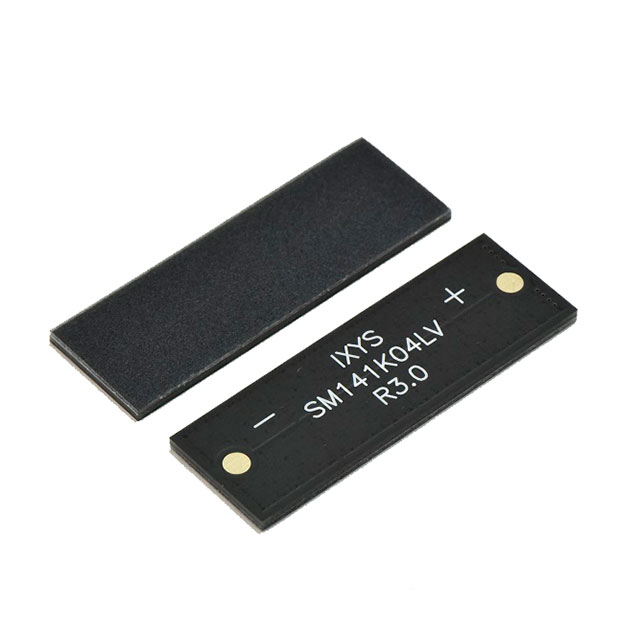

ANYSOLAR Ltd SM141K04LV	2.23 V	55.1 mA	Monocrystalline	90 °C	-40 C	0.591 in	15 mm	1.772 in	45 mm	2.1 mm	0.083 "	Cells	58.6 mA	123 mW	2.76 V

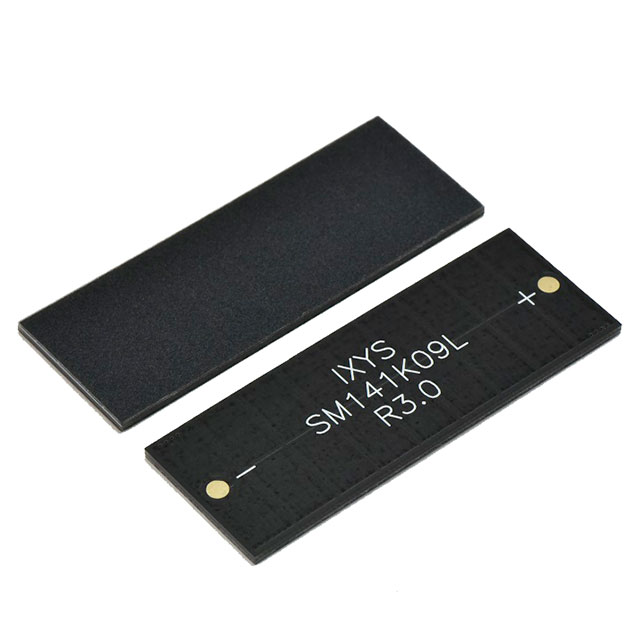

ANYSOLAR Ltd SM141K09L	5.02 V	55.1 mA	Monocrystalline	90 °C	-40 C	0.906 in		2.48 in	63 mm		0.083 "	Cells	58.6 mA	277 mW	6.22 V	2.1 mm	23 mm
