VAOL-S1513 Series

Catalog

LED RGB CLEAR 4SMD

Part	Lens Size [y]	Lens Size [x]	Configuration	Lens Transparency	Color	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Lens Color	Wavelength - Dominant	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Current - Test	Viewing Angle	Lens Style

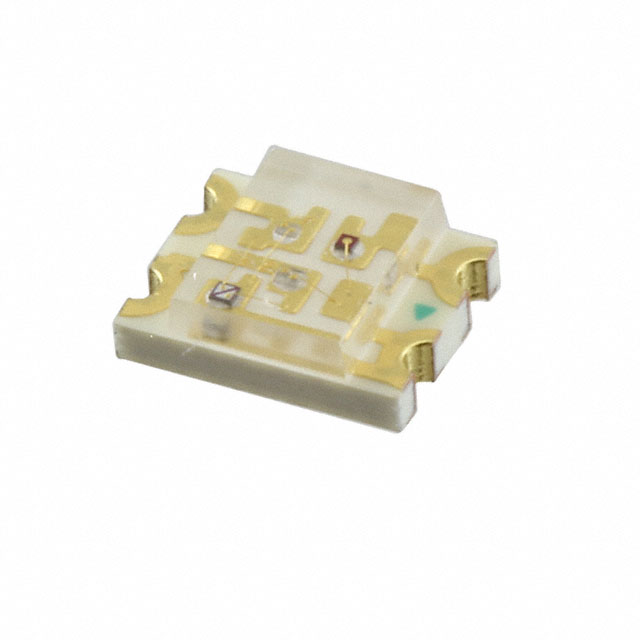

Visual Communications Company - VCC VAOL-S1513RGB	2.6 mm	2 mm	Common Anode	Clear	Blue Green Red	4-SMD No Lead	180 mcd	70 mcd	140 mcd	1.1 mm	2 V 3.3 V 3.3 V	468 nm 518 nm 632 nm	Colorless	470 nm 525 nm 624 nm	Surface Mount	2.6 mm	3.2 mm	4-SMD	20mA Blue 20mA Green 20mA Red	120 °	Rectangle with Flat Top
