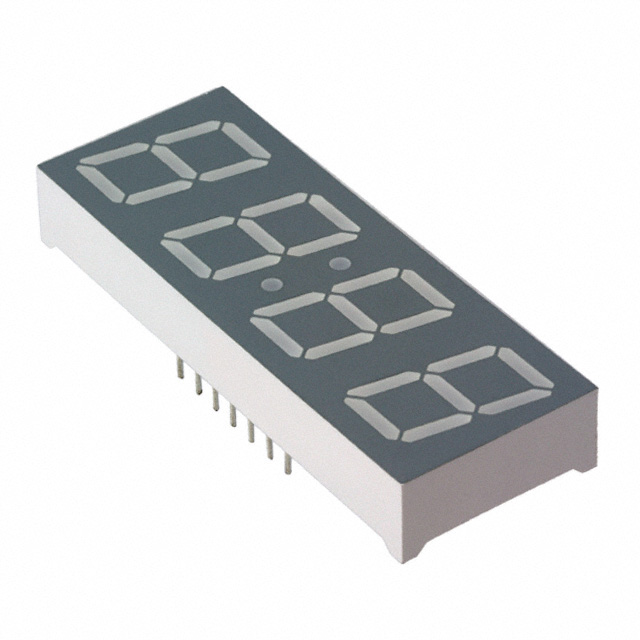

HDSP-B04 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISP 7SEG 0.56" QUAD RED 12DIP
| Part | Display Type | Common Pin | Power Dissipation (Max) [Max] | Color | Voltage - Forward (Vf) (Typ) | Number of Characters | Package / Case | Package / Case | Package / Case | Millicandela Rating | Wavelength - Peak | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Current - Test | Digit/Alpha Size | Digit/Alpha Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 7-Segment Clock | Common Anode | 65 mW | Red | 2.05 V | 4 | 15.24 mm | 0.6 in | 12-DIP | 5.5 mcd | 632 nm | 51.2 mm | 2.016 " | 8 mm | 0.752 in | 0.315 in | 19.1 mm | 20 mA | 0.56 in | 14.22 mm |
