2314821 Series

Catalog

14P,2MM,B-B,REC,DRVT,2.7,0.38AU,

Part	Insulation Color	Connector Type	Contact Finish - Post	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Termination	Number of Positions Loaded	Contact Finish - Mating	Insulation Material	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type

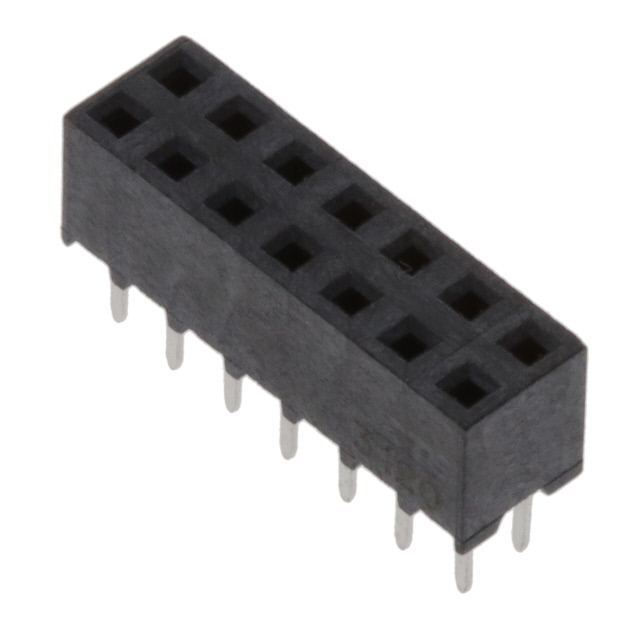

TE Connectivity Raychem Cable Protection 1-2314821-4	Black	Receptacle	Tin	UL94 V-0	Square	15 µin	0.38 µm	0.177 in	4.5 mm	Through Hole	125 °C	-40 °C	2	Phosphor Bronze	3 µm	118.1 µin	0.079 in	2 mm	2 A	Solder	All	Gold	Liquid Crystal Polymer (LCP)	Push-Pull	0.106 in	2.69 mm	14	125 VDC	0.079 in	2 mm	Female Socket
