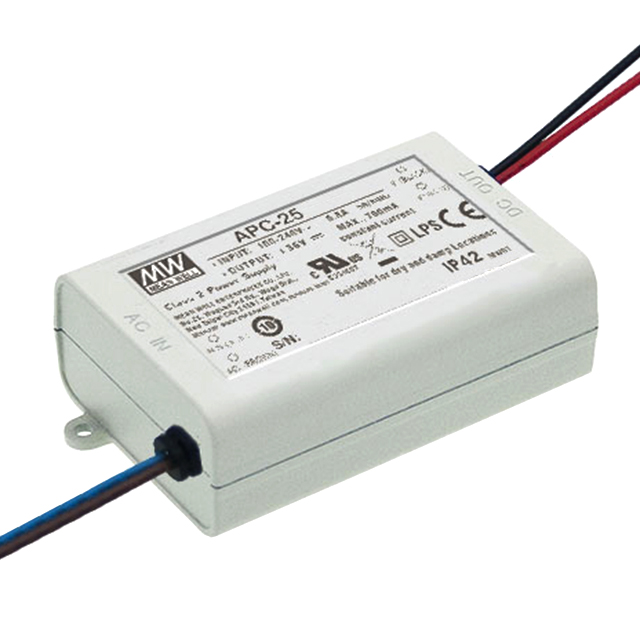

APC-25 Series

Catalog

LED DRIVER CC AC/DC 9-24V 1.05A

Part	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Ratings	Termination Style	Number of Outputs	Current - Output (Max) [Max]	Type	Voltage - Isolation	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Voltage - Input (Min) [Min]	Topology	Approval Agency
MEAN WELL USA Inc. APC-25-1050	Chassis Mount	83 %	264 VAC	IP42	Wire Leads	1	1.05 A	Constant Current	3000 V	OVP SCP	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	-30 ░C	70 °C	9 V	24 V	25 W	90 VAC	AC DC Converter	CE cURus
MEAN WELL USA Inc. APC-25-350	Chassis Mount	83 %	264 VAC	IP42	Wire Leads	1	350 mA	Constant Current	3000 V	OVP SCP	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	-30 ░C	70 °C	25 V	70 V	25 W	90 VAC	AC DC Converter	CE
MEAN WELL USA Inc. APC-25-500	Chassis Mount	83 %	264 VAC	IP42	Wire Leads	1	500 mA	Constant Current	3000 V	OVP SCP	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	-30 ░C	70 °C	15 V	50 V	25 W	90 VAC	AC DC Converter	CE UR
