FSG.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG FEMALE 2P RA SLDR CUP
| Part | Primary Material | Connector Type | Backshell Material, Plating | Fastening Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Ingress Protection | Shell Size - Insert | Contact Finish - Mating | Orientation [custom] | Insert Material | Mounting Type | Shell Finish | Color | Shielding | Material Flammability Rating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

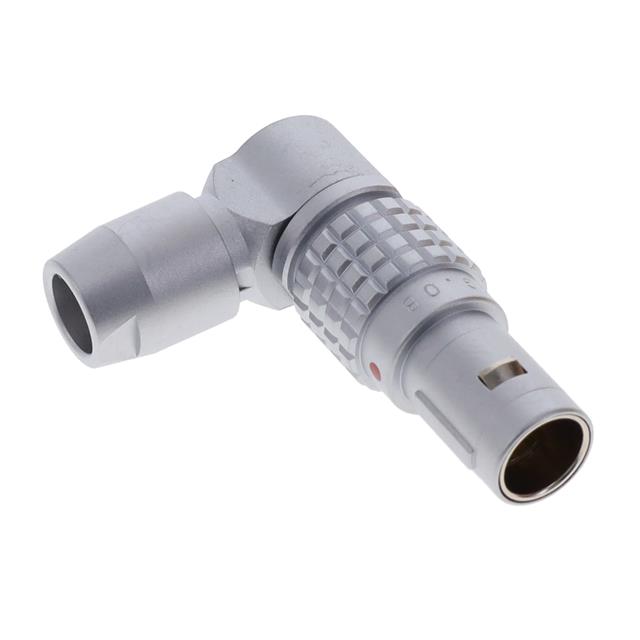

Metal | Plug Male Pins | Brass Chrome | Detent Lock Push-Pull | 2 | 200 °C | -55 C | Backshell | Brass | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | 10 A | IP50 - Dust Protected | 302 | Gold | G | Polyetheretherketone (PEEK) | Free Hanging (In-Line) Right Angle | Chrome | Silver | Shielded | UL94 V-0 | Brass | |

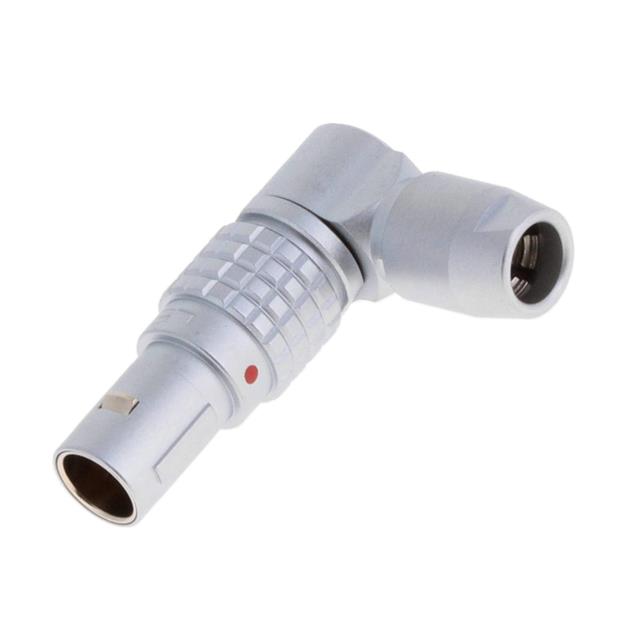

Metal | Plug Male Pins | Brass Chrome | Detent Lock Push-Pull | 4 | 200 °C | -55 C | Backshell | Brass | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | 7 A | IP50 - Dust Protected | 304 | Gold | G | Polyetheretherketone (PEEK) | Free Hanging (In-Line) Right Angle | Chrome | Silver | Shielded | UL94 V-0 | Brass |
