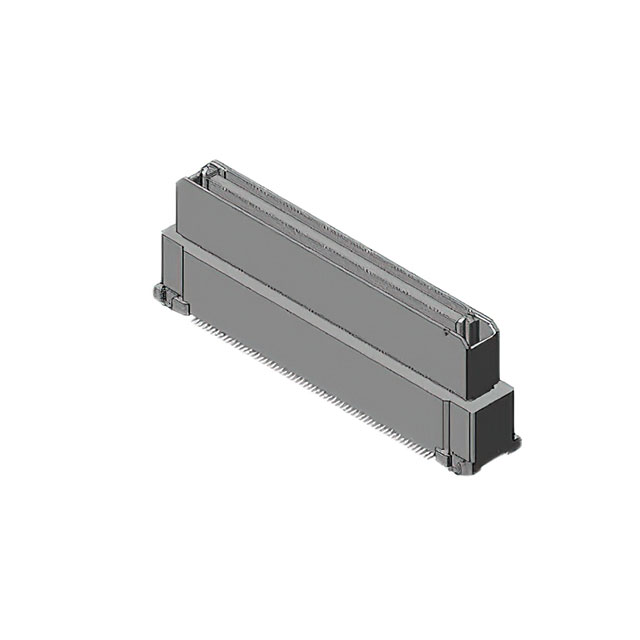

MA01F Series

Catalog

CONN FLOATING SIDE STR 60 POS

Part	Number of Positions	Pitch	Pitch	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Contact Finish

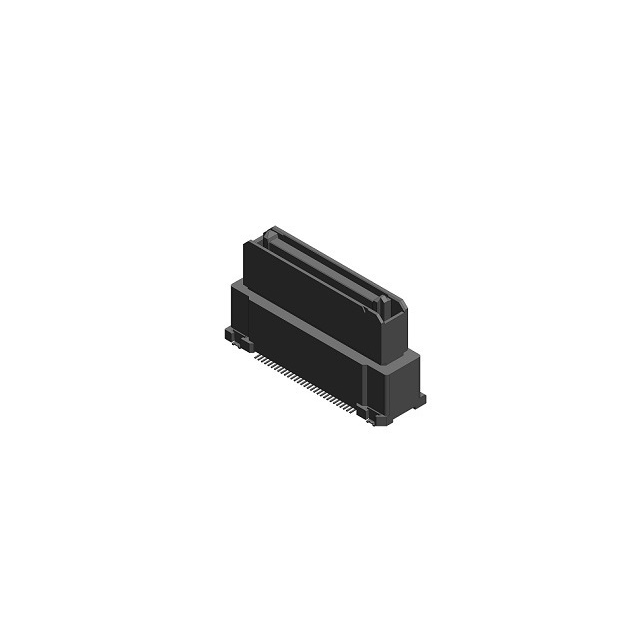

JAE Electronics MA01F060VACBR150	60	0.64 mm	0.025 in	20 mm	0.72 in	18.3 mm	Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

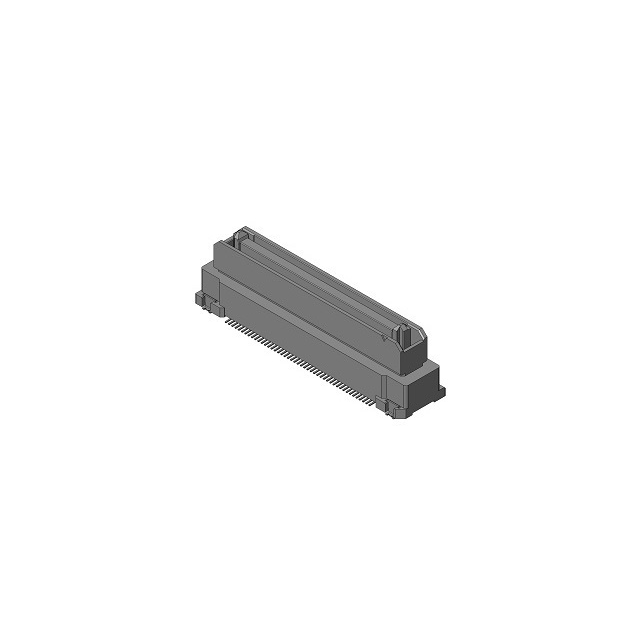

JAE Electronics MA01F090VABBR300	90	0.64 mm	0.025 in	14 mm			Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

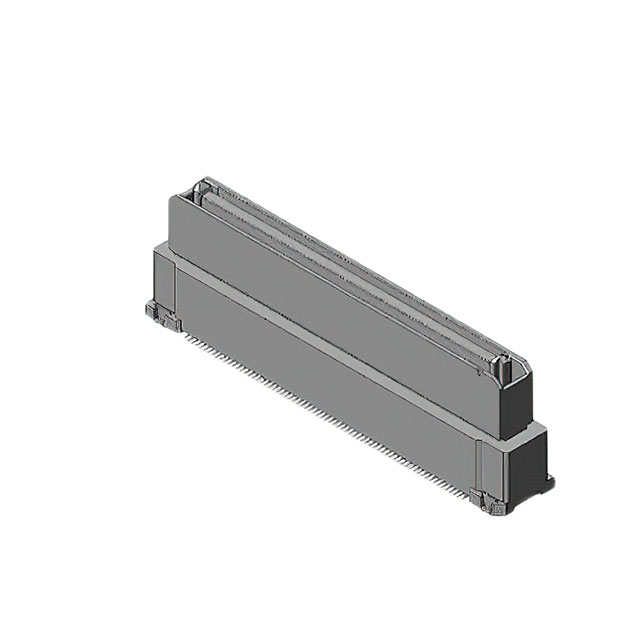

JAE Electronics MA01F140VACBR150	140	0.64 mm	0.025 in	20 mm 22 mm 30 mm	0.72 in	18.3 mm	Board Guide Solder Retention	0.1 Ám	4 Áin	Surface Mount	2	Gold
JAE Electronics MA01F060VABBR300	60	0.64 mm	0.025 in	14 mm			Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

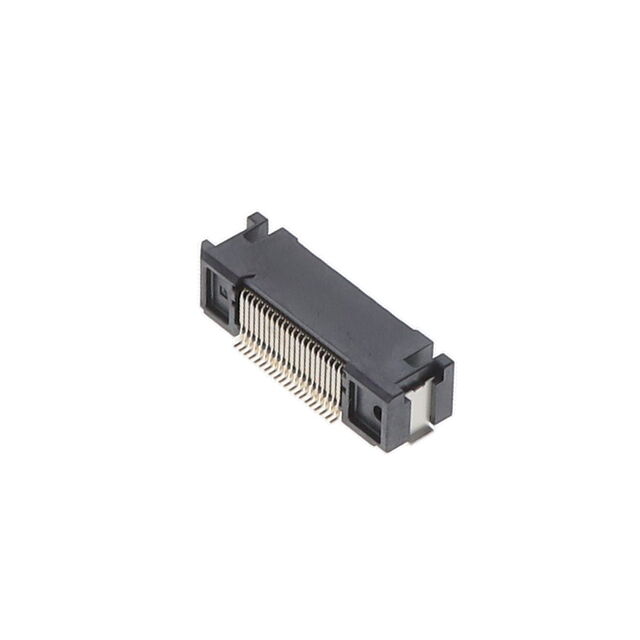

JAE Electronics MA01F040VABBR300	40	0.64 mm	0.025 in				Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

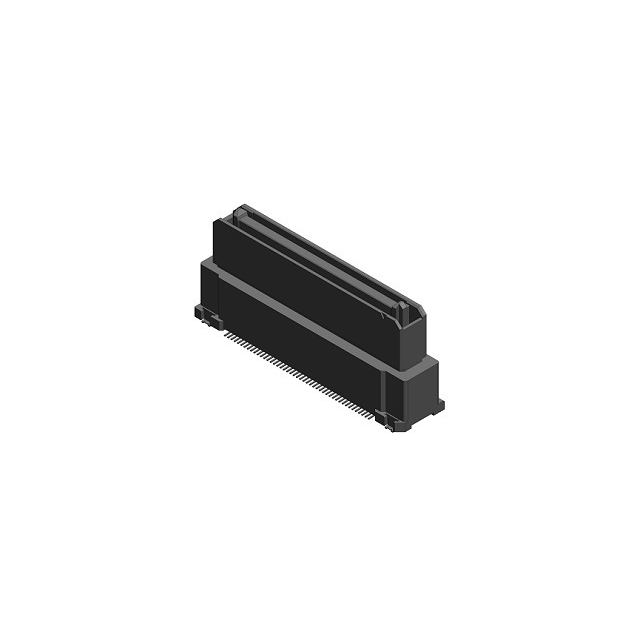

JAE Electronics MA01F090VACBR150	90	0.64 mm	0.025 in	30 mm	0.72 in	18.3 mm	Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold
JAE Electronics MA01F100VABBR300	100	0.64 mm	0.025 in	14 mm			Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold
JAE Electronics MA01F080VACBR150	80	0.64 mm	0.025 in	20 mm	0.72 in	18.3 mm	Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

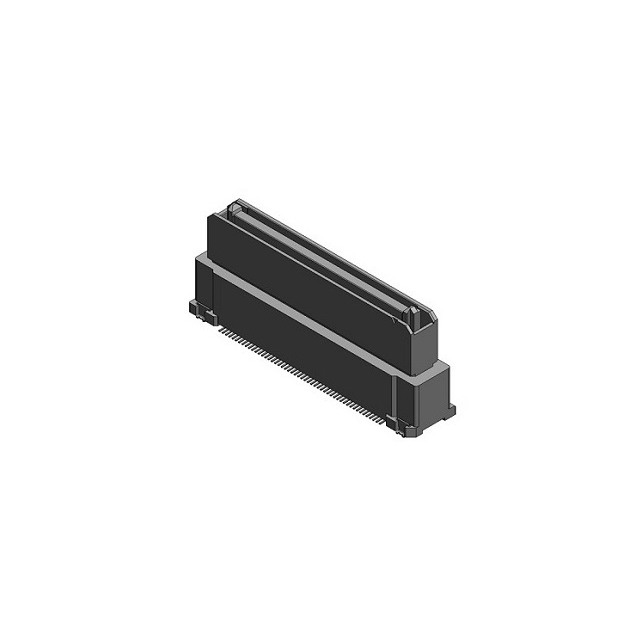

JAE Electronics MA01F100VACBR150	100	0.64 mm	0.025 in	30 mm	0.72 in	18.3 mm	Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold

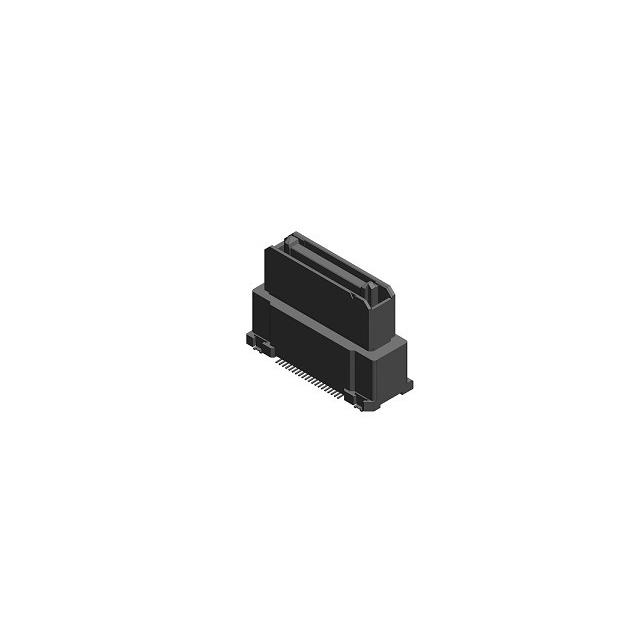

JAE Electronics MA01F040VACBR150	40	0.64 mm	0.025 in		0.72 in	18.3 mm	Board Guide	0.1 Ám	4 Áin	Surface Mount	2	Gold
