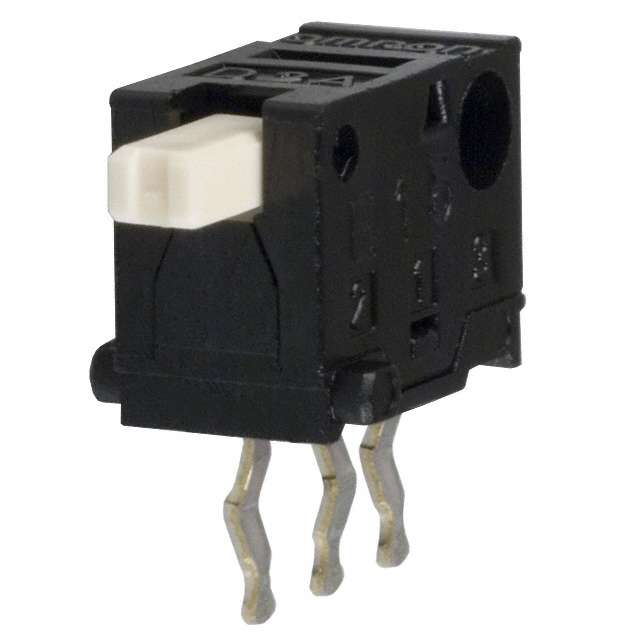

D2A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH: DETECTING; POS: 2; SPDT; 0.1A/30VDC; BLACK; LEADS: FOR PCB
| Part | Operating Position | Operating Position | Switch Function | Electrical Life | Current Rating (Amps) | Ingress Protection | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Mechanical Life | Release Force | Operating Force | Mounting Type | Voltage Rating - DC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 7.5 mm | 0.295 in | On-Mom | 50000 Cycles | 100 mA | IP00 | PC Pin | -10 °C | 80 °C | Overtravel Plunger | 50000 Cycles | 15 gf | 100 gf | Right Angle Through Hole | 30 V | SPDT |
Omron Electronics Inc-EMC Div | 7.5 mm | 0.295 in | On-Mom | 50000 Cycles | 100 mA | IP00 | PC Pin | -10 °C | 80 °C | Overtravel Plunger | 50000 Cycles | 5.099 gf | 50 gf | Right Angle Through Hole | 30 V | SPDT |
