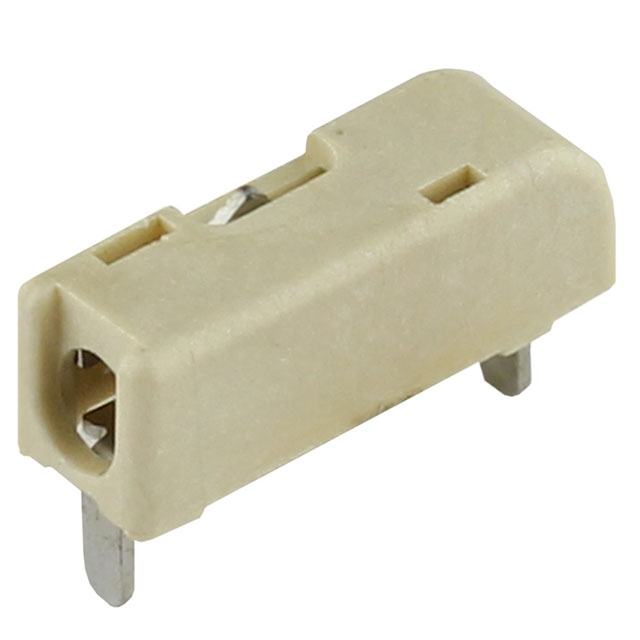

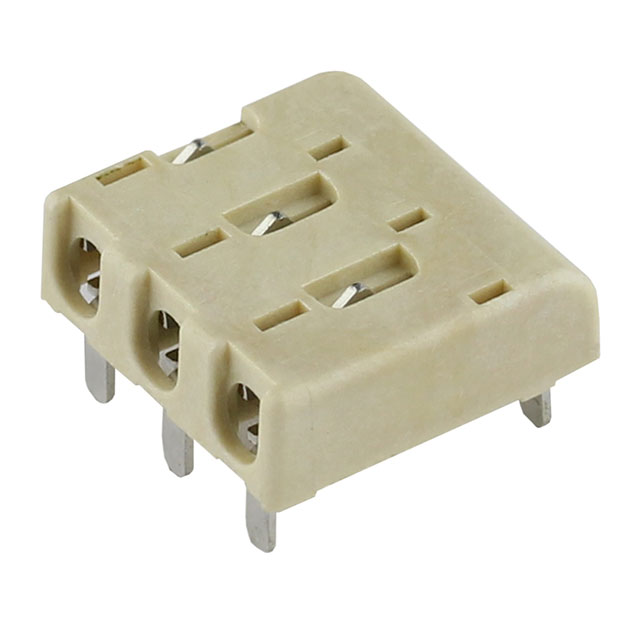

AWBR-400 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
LED CONNECTOR
| Part | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Mounting Type | Connector Type | Style | Housing Material | Pitch | Pitch | Contact Material | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 9 A | 17.5 AWG | 20 AWG | Solder | Right Angle Through Hole | Receptacle Poke-In Wire | Board to Cable/Wire | Glass Filled Liquid Crystal Polymer (LCP) | 4 mm | 0.157 in | Phosphor Bronze | Tin | 1 | -40 C | 105 ░C |
 Assmann WSW Components | 9 A | 17.5 AWG | 20 AWG | Solder | Right Angle Through Hole | Receptacle Poke-In Wire | Board to Cable/Wire | Glass Filled Liquid Crystal Polymer (LCP) | 4 mm | 0.157 in | Phosphor Bronze | Tin | -40 C | 105 ░C | |
Assmann WSW Components | 9 A | 17.5 AWG | 20 AWG | Solder | Right Angle Through Hole | Receptacle Poke-In Wire | Board to Cable/Wire | Glass Filled Liquid Crystal Polymer (LCP) | 4 mm | 0.157 in | Phosphor Bronze | Tin | -40 C | 105 ░C |
