25_TNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

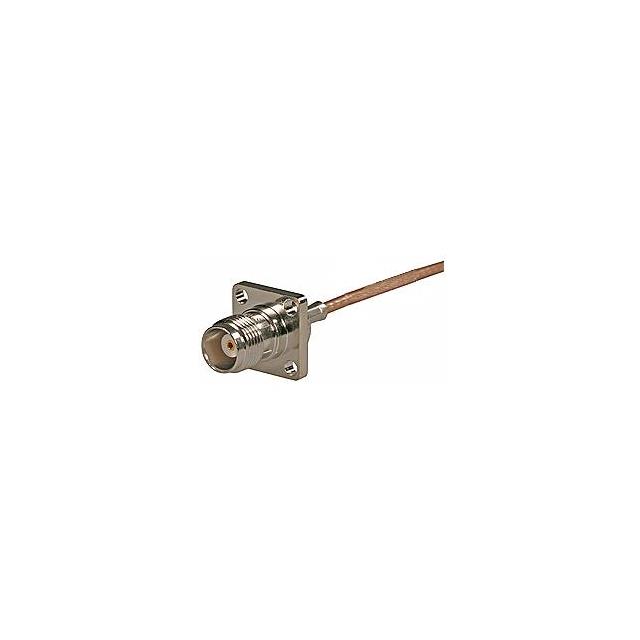

25_TNC-50-2-21/133_NE
| Part | Impedance | Cable Group | Center Contact Material | Mounting Type | Connector Type | Contact Termination | Connector Style | Mounting Feature | Number of Ports | Housing Color | Shield Termination | Fastening Type | Frequency - Max [Max] | Body Material | Center Contact Plating | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 50 Ohms | RG-405 (.086 Semi Rigid) | Beryllium Copper | Panel Mount | Female Socket Jack | Solder | TNC | Flange | 1 | Silver | Solder | Threaded | 11 GHz | ||||||||
 Huber+Suhner, Inc. | 50 Ohms | 188 316 RG-174 | Beryllium Copper Brass | Panel Mount | Female Socket Jack | Crimp | TNC | Flange | 1 | Silver | Crimp | Threaded | 11 GHz | Brass | Gold | 500 V | White Bronze | -65 ░C | 165 °C | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) |
 Huber+Suhner, Inc. | 50 Ohms | RG-B4C | Beryllium Copper | Panel Mount | Female Socket Jack | Crimp | TNC | Flange | 1 | Silver | Clamp | Threaded | 11 GHz | Brass | Gold | 500 V | Nickel | -60 °C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) |
