TL6100 Series

Manufacturer: E-Switch

Catalog

MICROSWITCH TACT; SPST-NO X2; POS: 2; 0.05A/12VDC; THT; NONE; 1.57N

Part	Mechanical Life	Actuator Material	Switch Travel	Actuator Type	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Features	Actuator Height off PCB, Vertical [z]	Switch Function	Actuator Orientation	Illumination	Contact Rating @ Voltage	Operating Force	Mounting Type

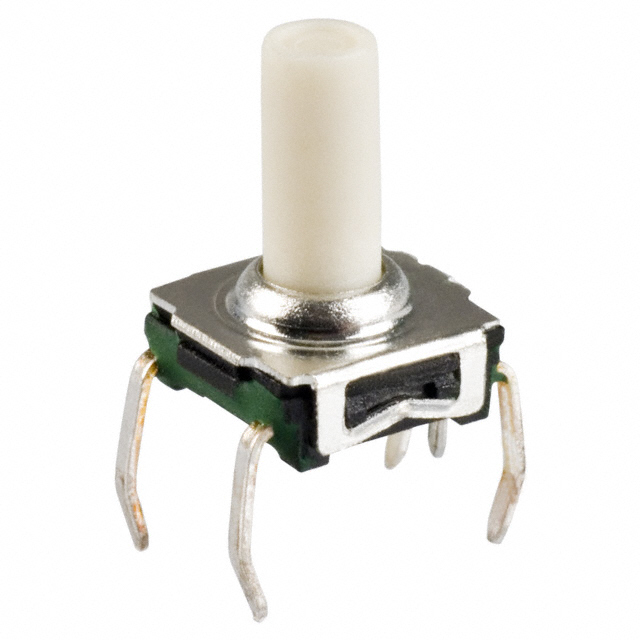

E-Switch TL6100DF160QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	10 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	160 gf	Through Hole

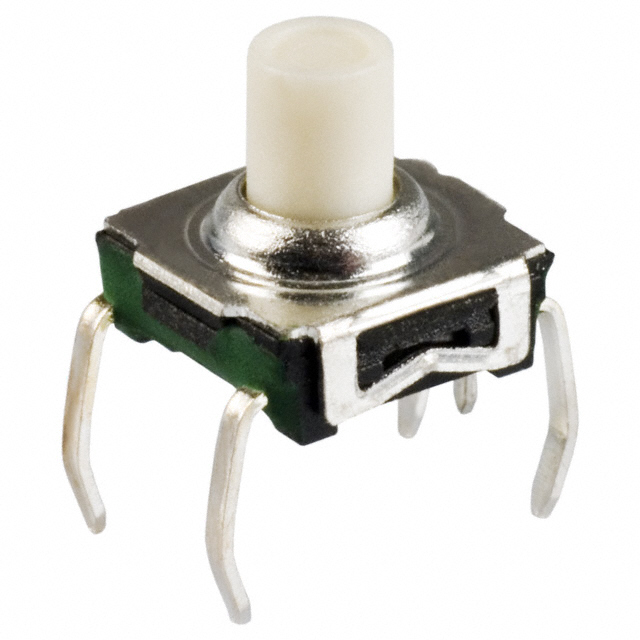

E-Switch TL6100CF300QP	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	6.9 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	300 gf	Through Hole
E-Switch TL6100DF160QPSSDOME	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Stainless Steel Contact Dome	10 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	160 gf	Through Hole
E-Switch TL6100AF130QPSSDOME	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	4.7 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	130 gf	Through Hole
E-Switch TL6100DF130QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	10 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	130 gf	Through Hole
E-Switch TL6100AF130QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	4.7 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	130 gf	Through Hole
E-Switch TL6100DF300QPSSDOME	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	10 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	300 gf	Through Hole

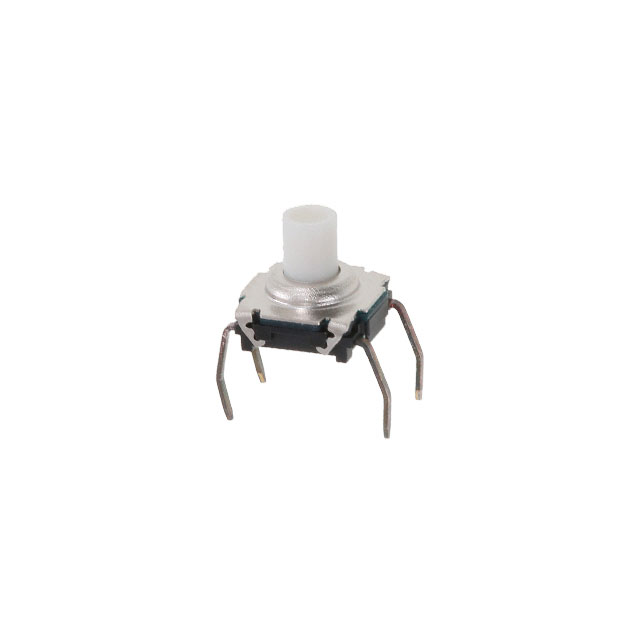

E-Switch TL6100CF130QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	6.9 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	130 gf	Through Hole
E-Switch TL6100BF500QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO		5.2 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	0.5 kgf	Through Hole
E-Switch TL6100DF300QP	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	Standard	7.2 mm	7.2 mm	85 °C	-40 C	PC Pin	SPST-NO	Process Sealed	10 mm	Off-Mom	Top Actuated	Non-Illuminated	0.05 A 12 VDC	300 gf	Through Hole
