FSM4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

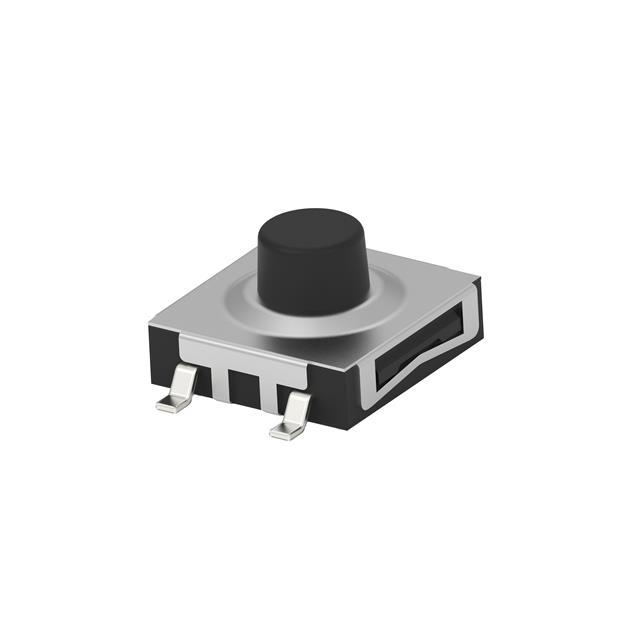

SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Actuator Material | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Actuator Orientation | Circuit | Outline [y] | Outline [x] | Illumination | Contact Rating @ Voltage | Ingress Protection | Switch Function | Actuator Type | Actuator Height off PCB, Vertical [z] | Operating Force | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.35 mm | Thermoplastic | 1000000 Cycles | 85 °C | -35 °C | Sealed - Fully | Surface Mount | Top Actuated | SPST-NO | 7.3 mm | 7.6 mm | Non-Illuminated | 0.05 A 24 VDC | IP67 - Dust Tight Waterproof | Off-Mom | Standard | 5 mm | 160 gf | Gull Wing |
 TE Connectivity AMP Connectors | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 100000 Cycles | 105 ░C | -35 °C | Through Hole | Top Actuated | SPST-NO | 6 mm | 6 mm | Non-Illuminated | 0.05 A 24 VDC | Off-Mom | Standard | 5 mm | 160 gf | PC Pin |
