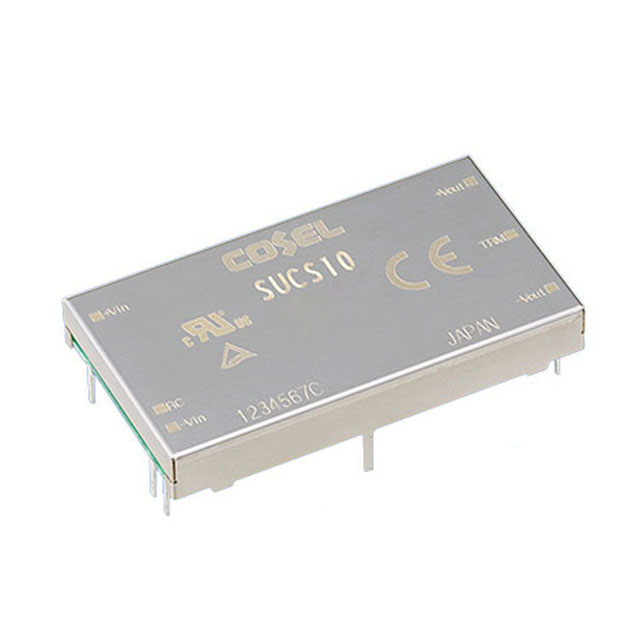

SUCS10053 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 8.6W
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Type | Package / Case | Voltage - Isolation | Voltage - Output 1 | Current - Output (Max) [Max] | Efficiency | Power (Watts) | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 0.85 in | 21.5 mm | 0.28 " | 1.58 inches | 40.2 mm | 7 mm | 4.5 V | ITE (Commercial) | -40 °C | 85 °C | 1 | 9 V | Isolated Module | 6-SMD Module | 500 V | 3.3 V | 2.6 A | 81 % | 8.6 W | Surface Mount | |
 Cosel USA, Inc. | 0.85 in | 21.5 mm | 0.28 " | 1.58 inches | 40.2 mm | 7 mm | 4.5 V | ITE (Commercial) | -40 °C | 85 °C | 1 | 9 V | Isolated Module Conformal Coated | 6-DIP Module | 500 V | 3.3 V | 2.6 A | 81 % | 8.6 W | Through Hole | |
Cosel USA, Inc. | 0.85 in | 21.5 mm | 0.28 " | 1.58 inches | 40.2 mm | 7 mm | 4.5 V | ITE (Commercial) | -40 °C | 85 °C | 1 | 9 V | Isolated Module | 6-DIP Module | 500 V | 3.3 V | 2.6 A | 81 % | Through Hole | OCP Remote On/Off |
