PDC54 Series
Manufacturer: Kingbright
Beta
⌘K

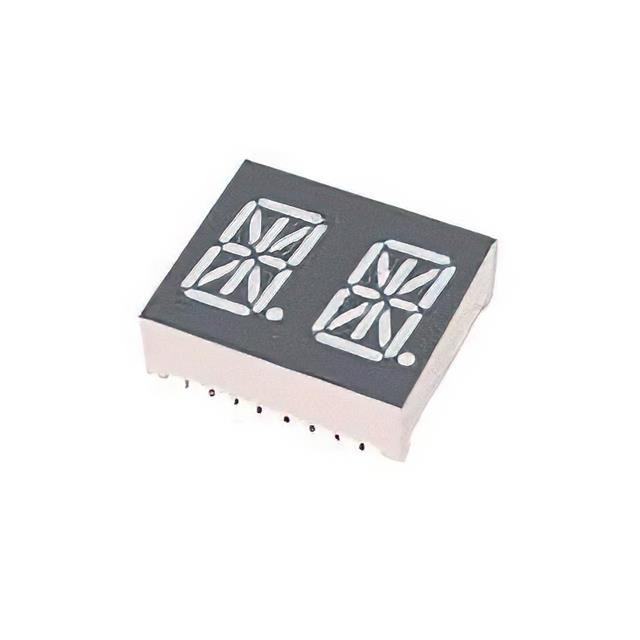

.54" DUAL ALPHANUMERIC RED DISPL
| Part | Display Type | Current - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Number of Characters | Package / Case [x] | Package / Case [x] | Package / Case | Common Pin | Millicandela Rating | Color | Digit/Alpha Size [custom] | Digit/Alpha Size | Wavelength - Peak | Digit/Alpha Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 14-Segment Alphanumeric | 20 mA | 21.2 mm | 25.2 mm | 7.8 mm | 0.992 inches | 0.835 " | 0.307 inches | 1.95 V | 75 mw | 2 | 15.24 mm | 0.6 in | 18-DIP | Common Cathode | 68 mcd | Red | 0.54 in | 13.8 mm | 645 nm | |
Kingbright | 14-Segment Alphanumeric | 10 mA | 21.2 mm | 25.2 mm | 7.8 mm | 0.992 inches | 0.835 " | 0.307 inches | 1.85 V | 75 mw | 2 | 15.24 mm | 0.6 in | 18-DIP | Common Cathode | 68 mcd | Red | 0.53 in | 645 nm | 13.5 mm |
