91614 Series

Catalog

CONN RCPT 8POS 0.1 GOLD SMD

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Mounting Type	Termination	Number of Rows	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Contact Material	Material Flammability Rating	Mated Stacking Heights	Features	Insulation Color	Applications
Amphenol ICC (FCI) 91614-308ALF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	8	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm	Board Lock Pick and Place	Gray	Automotive General Purpose Industrial Telecommunications

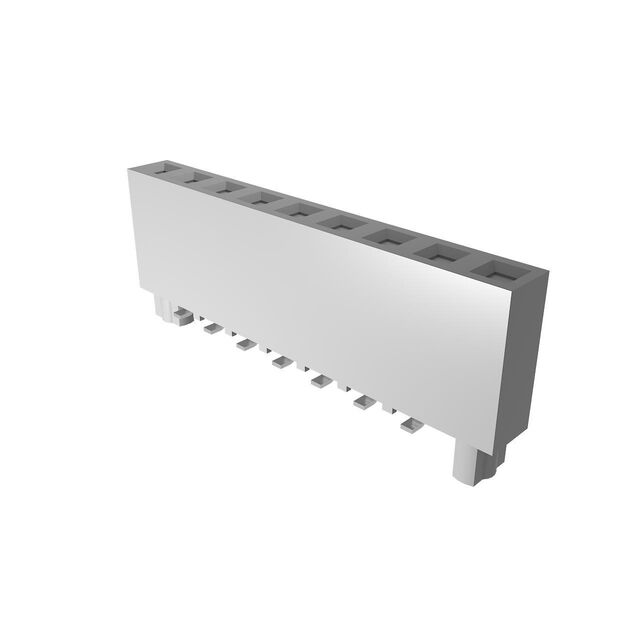

Amphenol ICC (FCI) 91614-407LF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	7	78.7 µin	2 µm	Square	All		Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm		Gray	Automotive General Purpose Industrial Telecommunications

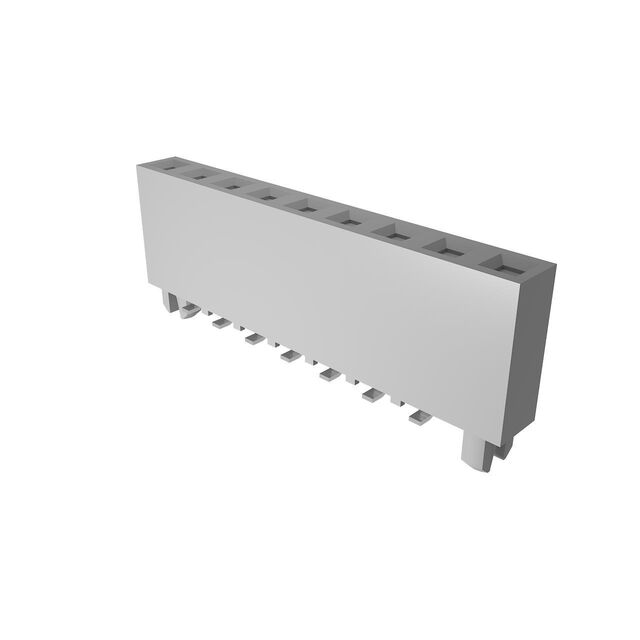

Amphenol ICC (FCI) 91614-307LF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	7	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm		Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-321LF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	21	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm		Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-405ALF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin		78.7 µin	2 µm	Square	All		Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm	Board Lock Pick and Place	Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-310GLF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	10	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm	Board Lock Pick and Place	Black	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-323LF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	23	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm		Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-320ALF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	20	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm	Board Lock Pick and Place	Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-410LF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	10	78.7 µin	2 µm	Square	All		Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm		Gray	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 91614-304ALF	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Surface Mount	Solder	1	Push-Pull	6.99 mm	0.275 in	Tin	4	30 Áin	0.76 Ám	Square	All	Gold	Receptacle Bottom or Top Entry	Phosphor Bronze	UL94 V-0	10.81 mm	Board Lock Pick and Place	Gray	Automotive General Purpose Industrial Telecommunications
