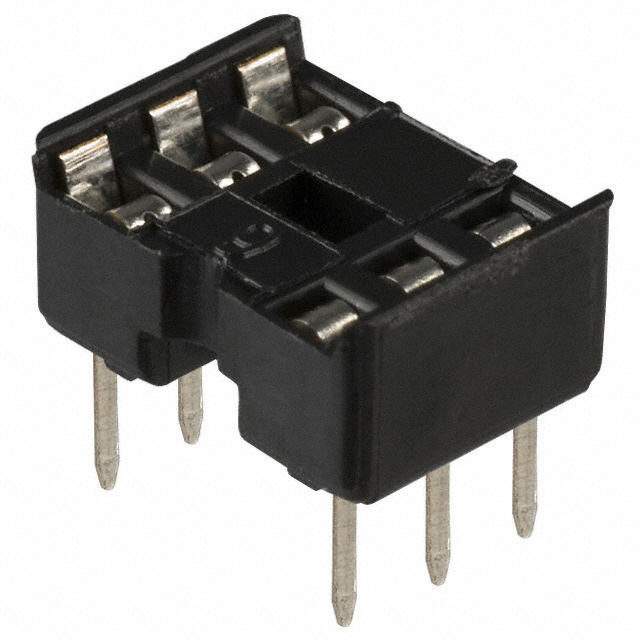

A 06-LC Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN IC DIP SOCKET 6POS TIN
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Termination Post Length | Termination Post Length | Contact Finish - Post | Housing Material | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Mounting Type | Contact Material - Post | Pitch - Post | Pitch - Post | Features | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Type | Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 1 A | UL94 V-0 | 30 mOhm | 3.15 mm | 0.124 in | Tin | Polybutylene Terephthalate (PBT) | 3 positions or pins | 2 | 6 | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Open Frame | Solder | -55 C | 85 °C | 0.1 " | 2.54 mm | Phosphor Bronze | 7.62 mm | 0.3 in | DIP |
