DB-25PF Series
Manufacturer: JAE Electronics
Beta
⌘K

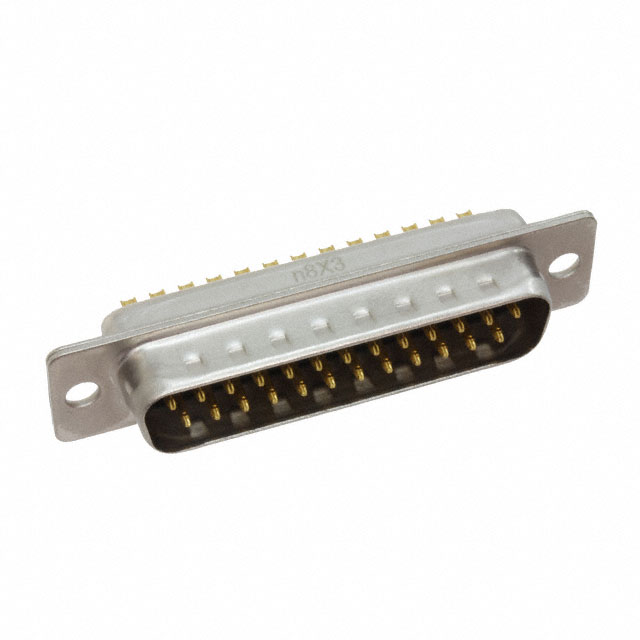

CONN D-SUB PLUG 25POS SLDR CUP
| Part | Wire Gauge | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Form | Number of Rows [custom] | Contact Finish | Connector Type | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Type | Current Rating (Amps) | Features | Shell Material, Finish | Number of Positions | Material Flammability Rating | Connector Style | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 20 AWG | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | Stamped | 2 | Gold | Plug Male Pins | Housing/Shell (Unthreaded) | B DB | 3 | Signal | 5 A | Grounding Indents Shielded | Nickel Plated Steel | 25 | UL94 V-0 | D-Sub | Free Hanging (In-Line) | |
 JAE Electronics | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | Stamped | 2 | Gold | Plug Male Pins | Housing/Shell (Unthreaded) | B DB | 3 | Signal | 5 A | Grounding Indents Shielded | Nickel Plated Steel | 25 | UL94 V-0 | D-Sub | Panel Mount Through Hole | Solder |
