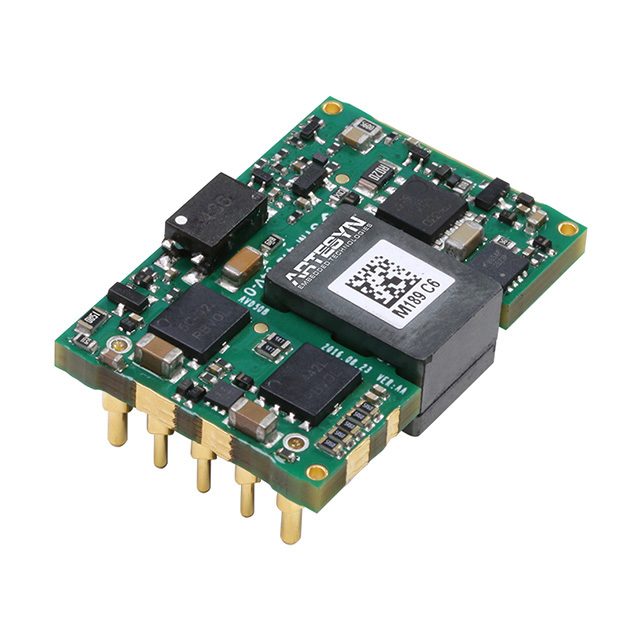

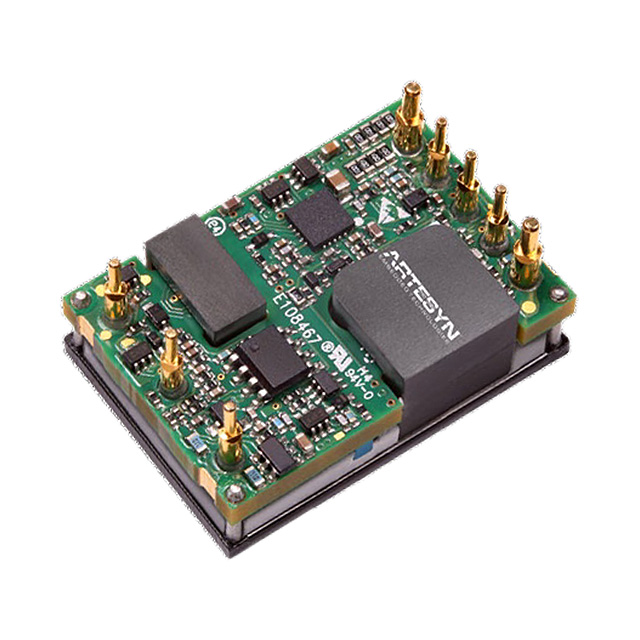

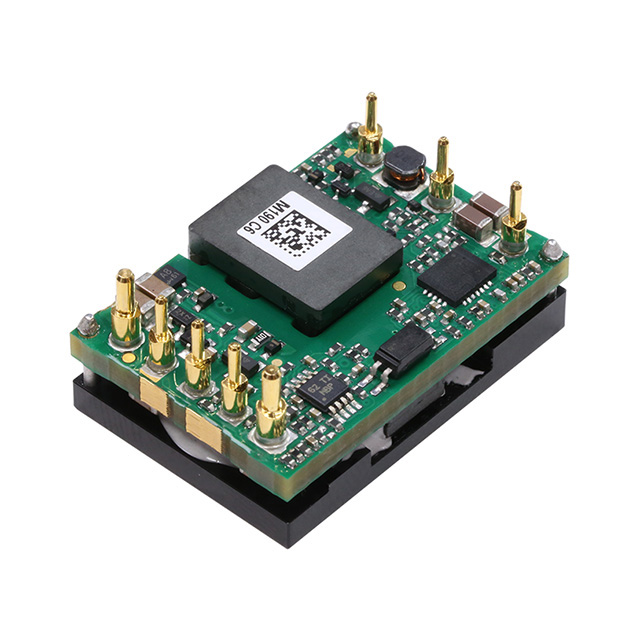

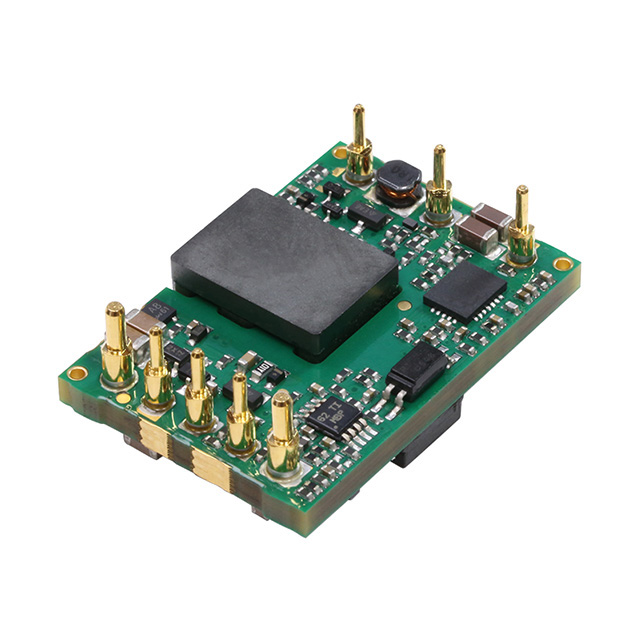

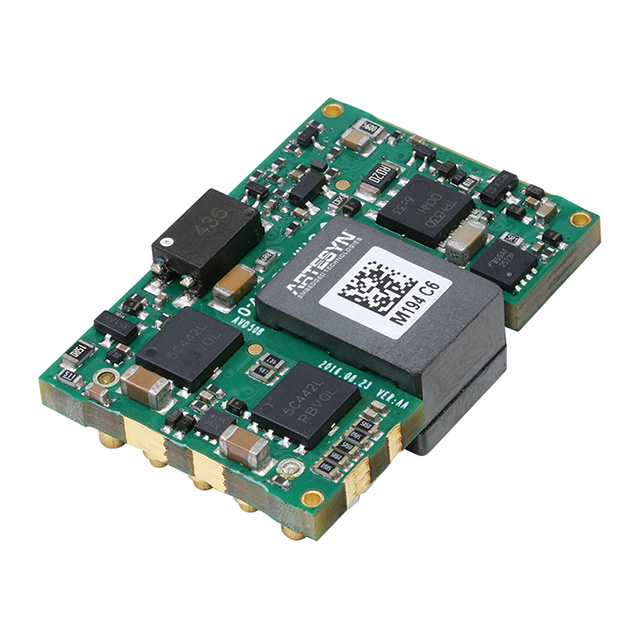

AVD50 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
50W, 36 - 75VIN, SINGLE, 5V@10A, 92% EFF, SIXTEETH BRICK, POSITIVE LOGIC/PIN LENGTH:3.8MM
| Part | Voltage - Input (Min) [Min] | Type | Efficiency | Control Features | Package / Case | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Voltage - Output 1 | Features | Mounting Type | Applications | Current - Output (Max) [Max] | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Isolation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 36 V | Isolated Module | 92 % | Active High Enable | 8-DIP Module 1/16 Brick | 75 V | 22.9 mm | 9.5 mm | 0.37 in | 0.9 in | 1.3 in | 33 mm | 1 | 5 V | Remote On/Off | Through Hole | ITE (Commercial) | 10 A | 50 W | |||||||
 ARTESYN / Advanced Energy | 36 V | Isolated Module | 91.5 % | Sixteenth Brick | 75 V | 0.36 in | 0.9 in | 1.3 in | 33 mm | 1 | 5 V | OCP OTP OVP Remote On/Off | Through Hole | ITE (Commercial) | 10 A | 50 W | 9.2 mm | 22.9 mm | 85 °C | -40 C | Sixteenth Brick | 1.5 kV | ||||
ARTESYN / Advanced Energy | 36 V | Isolated Module | 91 % | Active Low Enable | 8-DIP Module 1/16 Brick | 75 V | 22.9 mm | 9.5 mm | 0.37 in | 0.9 in | 1.3 in | 33 mm | 1 | 3.3 V | Remote On/Off | Through Hole | ITE (Commercial) | 15 A | 50 W | |||||||
 ARTESYN / Advanced Energy | 36 V | Isolated Module | 93 % | Sixteenth Brick | 75 V | 0.36 in | 0.9 in | 1.3 in | 33 mm | 1 | 12 V | OCP OTP OVP Remote On/Off | Through Hole | ITE (Commercial) | 4.17 A | 50 W | 9.2 mm | 22.9 mm | 85 °C | -40 C | Sixteenth Brick | 1.5 kV | ||||
 ARTESYN / Advanced Energy | 36 V | Isolated Module | 93 % | Sixteenth Brick | 75 V | 0.37 in | 0.9 in | 1.3 in | 33 mm | 1 | 12 V | OCP OTP OVP Remote On/Off | Surface Mount | ITE (Commercial) | 4.17 A | 50 W | 9.4 mm | 22.9 mm | 85 °C | -40 C | Sixteenth Brick | 1.5 kV | ||||
 ARTESYN / Advanced Energy | 36 V | Isolated Module | 93 % | Sixteenth Brick | 75 V | 0.47 " | 0.9 in | 1.3 in | 1 | 12 V | OCP OTP OVP Remote On/Off | Through Hole | ITE (Commercial) | 4.17 A | 50 W | 85 °C | -40 C | Sixteenth Brick | 1.5 kV | 12 mm 22.9 mm 33 mm | ||||||
ARTESYN / Advanced Energy | 36 V | Isolated Module | 92 % | Active Low Enable | 75 V | 1 | 5 V | Remote On/Off | Surface Mount | ITE (Commercial) | 10 A | 50 W |
