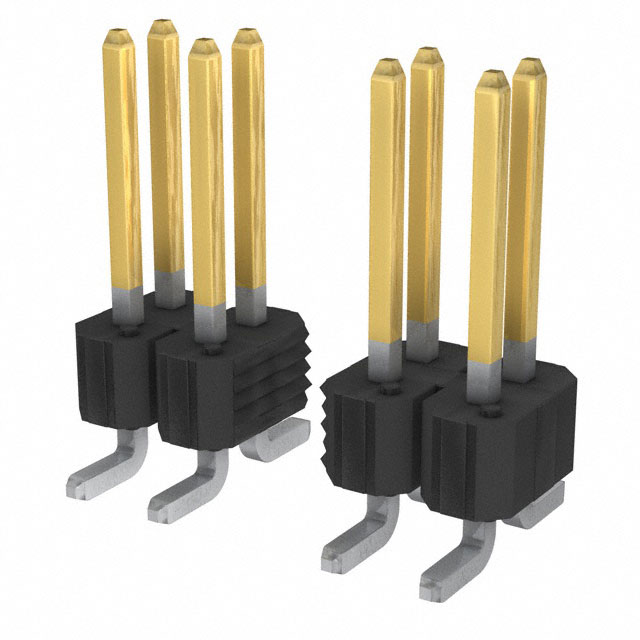

71277 Series

Catalog

CONN HEADER SMD 28POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Type	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Connector Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Contact Finish - Post	Shrouding	Number of Positions Loaded	Insulation Color	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Termination
Amphenol ICC (FCI) 71277-228H	0.1 in	2.54 mm	Male Pin	Push-Pull	0.318 "	8.08 mm	Phosphor Bronze	Header	2	2.54 mm	0.1 in	0.1 in	2.54 mm	15 µin	0.38 µm	Square	28	Tin	Unshrouded	All	Black	Surface Mount	Gold	UL94 V-0	Solder
Amphenol ICC (FCI) 71277-240H	0.1 in	2.54 mm	Male Pin	Push-Pull	0.318 "	8.08 mm	Phosphor Bronze	Header	2	2.54 mm	0.1 in	0.1 in	2.54 mm	15 µin	0.38 µm	Square	40	Tin	Unshrouded	All	Black	Surface Mount	Gold	UL94 V-0	Solder
Amphenol ICC (FCI) 71277-228HLF	0.1 in	2.54 mm	Male Pin	Push-Pull	0.318 "	8.08 mm	Phosphor Bronze	Header	2	2.54 mm	0.1 in	0.1 in	2.54 mm	15 µin	0.38 µm	Square	28	Tin	Unshrouded	All	Black	Surface Mount	Gold	UL94 V-0	Solder

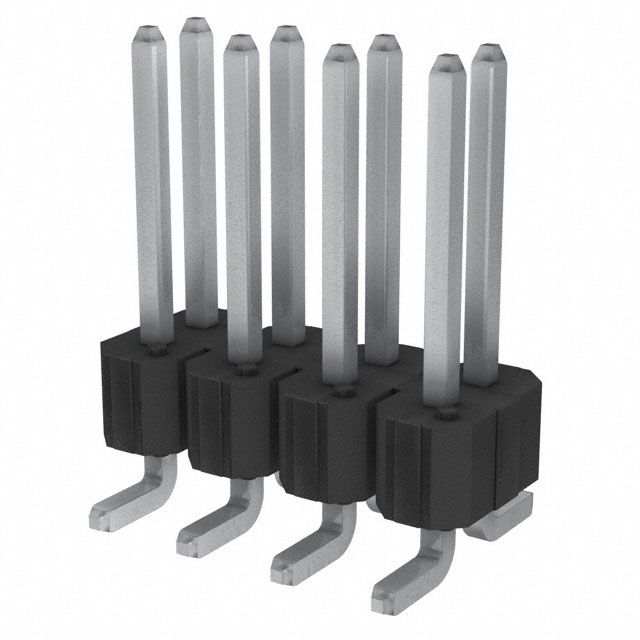

Amphenol ICC (FCI) 71277-408HLF	0.1 in	2.54 mm	Male Pin	Push-Pull	0.318 "	8.08 mm	Phosphor Bronze	Header	2	2.54 mm	0.1 in	0.1 in	2.54 mm	120 µin	3.05 Ám	Square	8	Tin	Unshrouded	All	Black	Surface Mount		UL94 V-0	Solder
