HM2R70 Series

Catalog

CONN RECEPT 132POS 2MM PRESS-FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Termination	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Finish	Number of Positions Loaded	Connector Style	Connector Usage
Amphenol ICC (FCI) HM2R70PA5108E9LF	-55 C	125 °C	1.5 A	Upper Shield	750 Vrms	1 Ám	39.4 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22
Amphenol ICC (FCI) HM2R70PA5101N9LF	-55 C	125 °C	1.5 A	Upper and Lower Shield	750 Vrms	0.76 Ám	30 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22
Amphenol ICC (FCI) HM2R70PA510FN9LF	-55 C	125 °C	1.5 A	Upper Shield	750 Vrms	0.76 Ám	30 Áin	5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	110	Gold	All	B 22
Amphenol ICC (FCI) HM2R70PA5108N9	-55 C	125 °C	1.5 A	Upper Shield	500 V	0.76 Ám	30 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22	CompactPCI J2/J5/RJ2
Amphenol ICC (FCI) HM2R70PA510FE9	-55 C	125 °C	1.5 A	Upper Shield	500 V	1 Ám	39.4 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22
Amphenol ICC (FCI) HM2R70PA5101N9	-55 C	125 °C	1.5 A	Upper and Lower Shield	500 V	0.76 Ám	30 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22

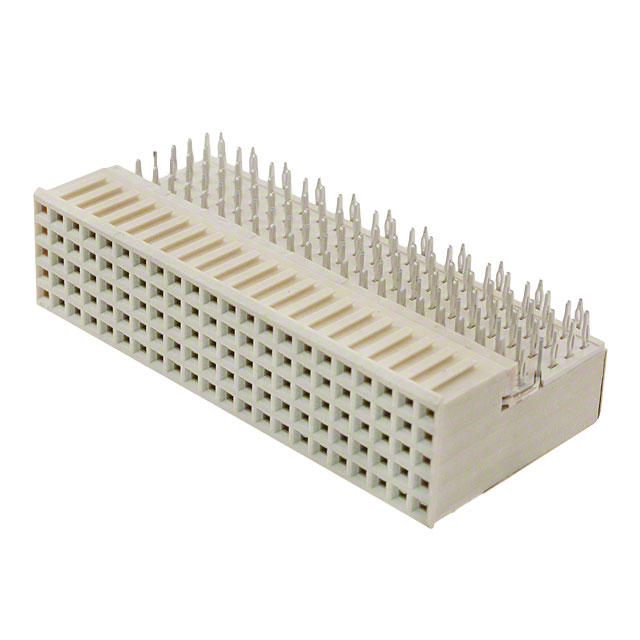

Amphenol ICC (FCI) HM2R70PA5108N9LF	-55 C	125 °C	1.5 A	Upper Shield	750 Vrms	0.76 Ám	30 Áin	1 5	Board Edge Right Angle Through Hole	Press-Fit	0.079 in	2 mm	Receptacle Female Sockets	132	Gold	All	B 22
