SML-LXL1210 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED/YLW CLEAR 1210 SMD

Part	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Configuration	Wavelength - Peak	Mounting Type	Current - Test	Millicandela Rating	Package / Case	Height (Max) [z]	Viewing Angle	Lens Style	Lens Size [x]	Lens Size [y]	Supplier Device Package	Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SML-LXL1210SRYC-TR	Colorless	3 mm	2.5 mm	Independent	585nm Yellow 660nm Red	Surface Mount	20 mA 20 mA	10 mcd 50 mcd	4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Red Yellow	Clear	1.7 V 2.1 V
Lumex Opto/Components Inc. SML-LXL1210IGC-TR	Colorless	3 mm	2.5 mm	Independent		Surface Mount		10 mcd 10 mcd	4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Green Red	Clear	2 V 2.2 V	20 mA	20 mA	565 nm 635 nm
Lumex Opto/Components Inc. SML-LXL1210SRSYCTR	Colorless	3 mm	2.5 mm	Independent		Surface Mount	20 mA 20 mA	50 mcd 90 mcd	4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Red Yellow	Clear	1.7 V 2.1 V			590 nm 660 nm
Lumex Opto/Components Inc. SML-LXL1210SYSUGC	Colorless	3 mm	2.5 mm	Independent	574nm Green 590nm Yellow	Surface Mount	20 mA 20 mA	140 mcd 250 mcd	4-SMD No Lead	1.5 mm	90 °	Rectangle with Irregular Top			1210	Green Yellow	Clear	2 V 2 V

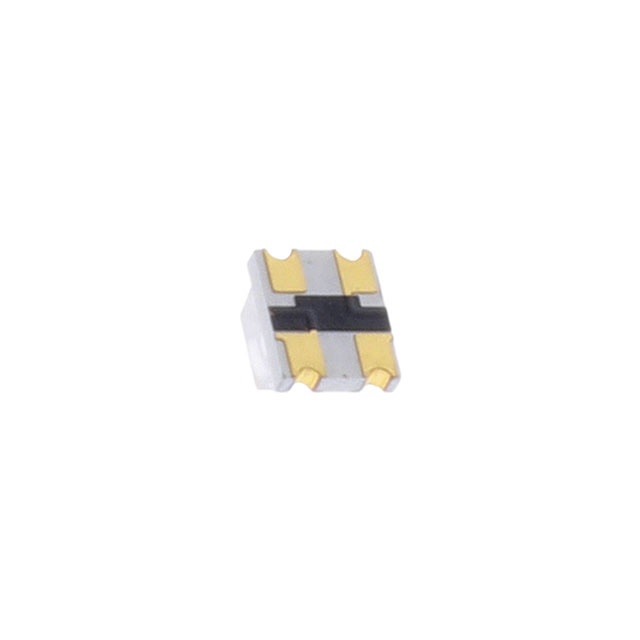

Lumex Opto/Components Inc. SML-LXL1210SRGC-TR	Colorless	3 mm	2.5 mm	Independent		Surface Mount		20 mcd 35 mcd	4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Green Red	Clear		20 mA	20 mA	570 nm 660 nm	2.1 V	1.7 V
Lumex Opto/Components Inc. SML-LXL1210GYC-TR	Colorless	3 mm	2.5 mm	Independent		Surface Mount	20 mA 20 mA		4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Green Yellow	Clear	2 V 2 V			565 nm 585 nm			10 mcd	6 mcd
Lumex Opto/Components Inc. SML-LXL1210YGC-TR	Colorless	3 mm	2.5 mm	Independent		Surface Mount	20 mA 20 mA		4-SMD No Lead	1.5 mm	60 °	Rectangle with Flat Top	1.8 mm	2.5 mm	1210	Green Yellow	Clear	2.1 V 2.2 V			565 nm 585 nm			10 mcd	6 mcd
