SA10-11 Series

Catalog

DISPLAY 7SEG 1.02" SGL RED 14DIP

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Display Type	Millicandela Rating	Number of Characters	Power Dissipation (Max)	Wavelength - Peak	Color	Current - Test	Package / Case	Package / Case	Package / Case	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]

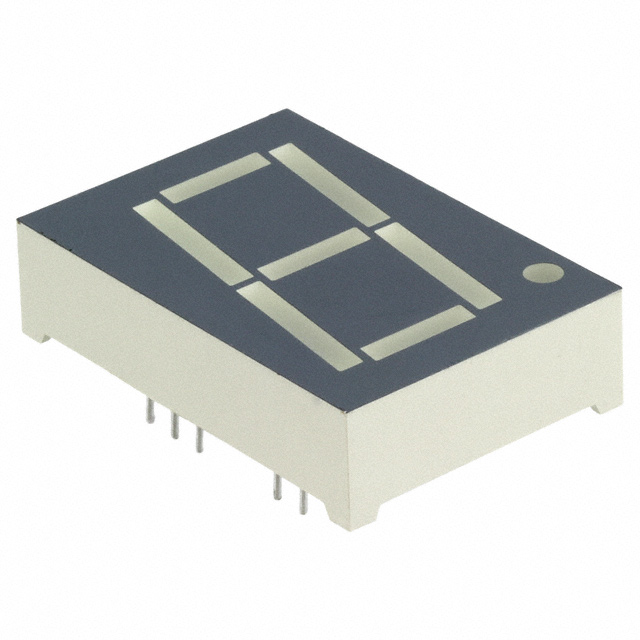

Kingbright SA10-11EWA	4 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	23 mcd	1	150 mW	627 nm	Red	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in
Kingbright SA10-11GWA	4.4 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	37 mcd	1		565 nm	Green	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in	125 mW
Kingbright SA10-11SYKWA	2 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	400 mcd	1		590 nm	Yellow	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in	75 mw

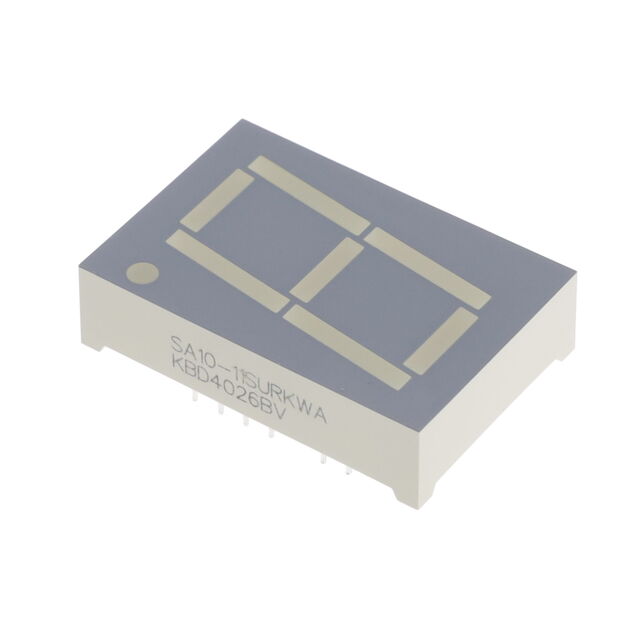

Kingbright SA10-11SURKWA	1.95 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	260 mcd	1		645 nm	Red	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in	75 mw
Kingbright SA10-11SRWA	3.7 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	120 mcd	1	150 mW	660 nm	Red	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in
Kingbright SA10-11YWA	4.2 V	0.335 in	32.9 mm	0.886 "	1.295 in	8.5 mm	22.5 mm	7-Segment	23 mcd	1	150 mW	590 nm	Yellow	20 mA	15.24 mm	14-DIP	0.6 in	Common Anode	26 mm	1.02 in
