M2032SD Series

Catalog

SWITCH TOGGLE 3PDT 6A 125V

Part	Electrical Life	Actuator Material	Features	Mounting Type	Illumination	Ingress Protection	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Bushing Thread	Actuator Type	Circuit	Actuator Length [x]

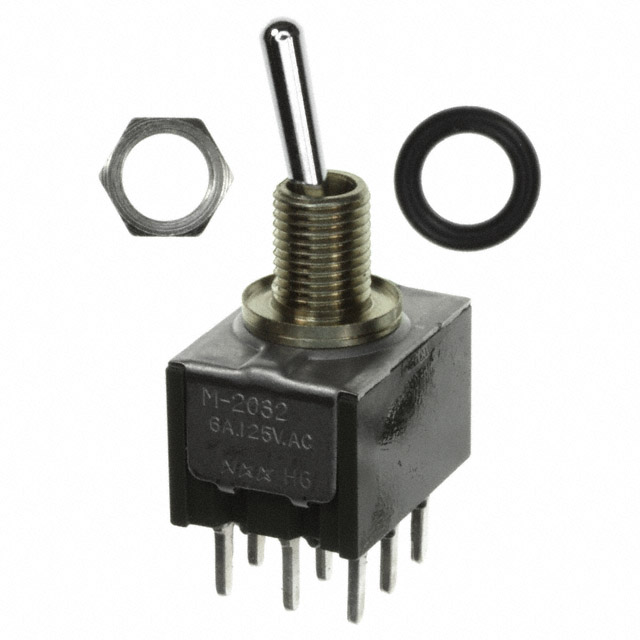

NKK Switches M2032SD3W03	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	Panel Mount	Non-Illuminated	IP67 - Dust Tight Waterproof	6.5 mm	PC Pin	125 V	On-On	30 V	85 °C	-30 ░C	4 A 6 A	1/4-40	Standard Round	3PDT

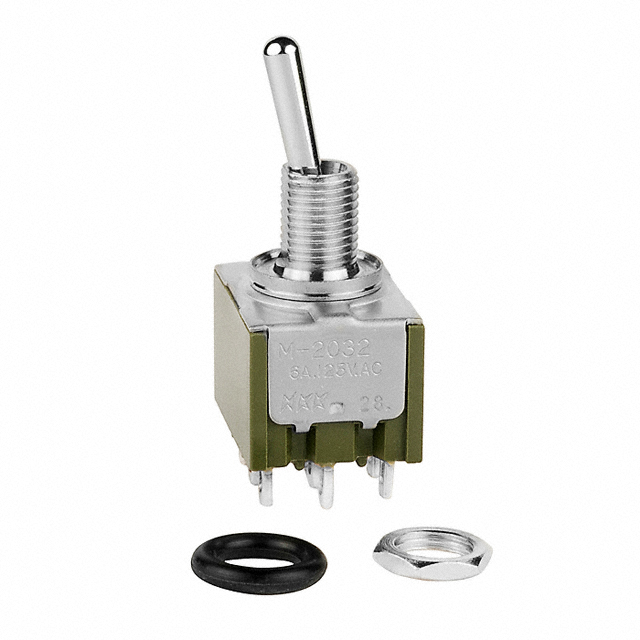

NKK Switches M2032SD3W01	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	Panel Mount	Non-Illuminated	IP67 - Dust Tight Waterproof	6.5 mm	Solder Lug	125 V	On-On	30 V	85 °C	-30 ░C	4 A 6 A	1/4-40	Standard Round	3PDT
NKK Switches M2032SD3W03-BA	25000 Steps	Brass Chrome Plated	Black Cap	Panel Mount	Non-Illuminated	IP67 - Dust Tight Waterproof	6.5 mm	PC Pin	125 V	On-On	30 V	85 °C	-30 ░C	4 A 6 A	1/4-40	Standard Round with Cap	3PDT	13.5 mm
