505565 Series
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Red
Manufacturer: Molex
Catalog
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Red
Beta
⌘K
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Red
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Red
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Red
| Part | Color | Number of Positions | Pitch | Pitch | Contact Type | Insulation Material | Mounting Type | Number of Rows | Fastening Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Red | 6 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle | |
 Molex | Black | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 1 | Latch Holder | Crimp | -40 C | 105 ░C | Receptacle | Contacts Not Included | |
 Molex | Red | 4 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle | |
 Molex | Blue | 4 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle | |
Molex | Red | 8 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle | |
 Molex | Black | 4 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 1 | Latch Holder | Crimp | -40 C | 105 ░C | Receptacle | Contacts Not Included |
 Molex | Black | 6 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 1 | Latch Holder | Crimp | -40 C | 105 ░C | Receptacle | Contacts Not Included |

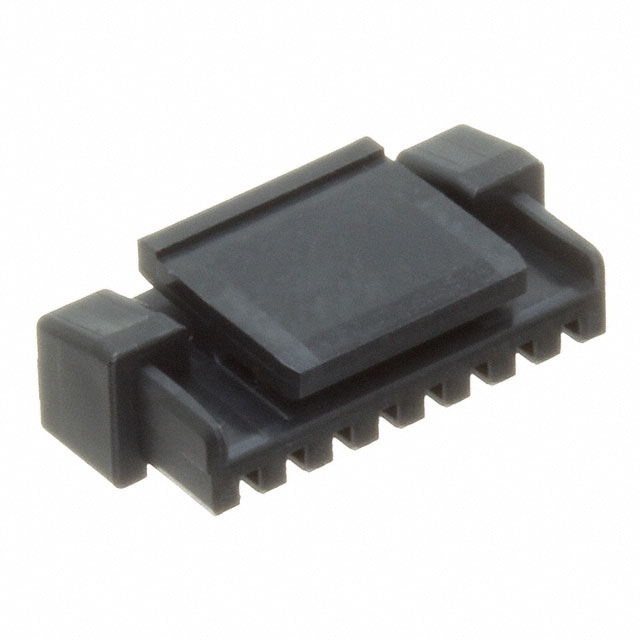

 Molex | Black | 8 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 1 | Latch Holder | Crimp | -40 C | 105 ░C | Receptacle | Contacts Not Included |

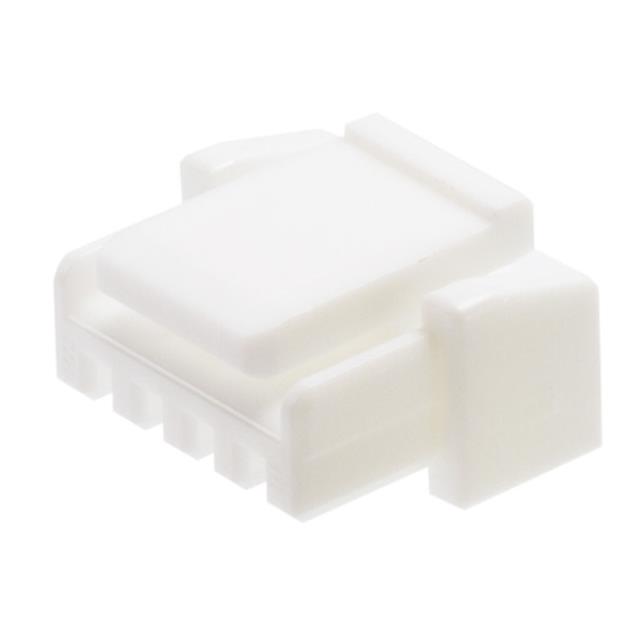

 Molex | Natural | 14 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle | |
Molex | Red | 5 | 0.049 in | 1.25 mm | Female Socket | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | 1 | Latch Lock | Crimp | -40 C | 105 ░C | Receptacle |
