ESDR0502N Series

Ultra-Low Capacitance ESD Protection Array for High Speed Data Lines

Catalog

Ultra-Low Capacitance ESD Protection Array for High Speed Data Lines

Part	Applications	Package / Case	Unidirectional Channels [custom]	Mounting Type	Supplier Device Package	Power Line Protection	Voltage - Breakdown (Min) [Min]	Type	Capacitance @ Frequency	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)

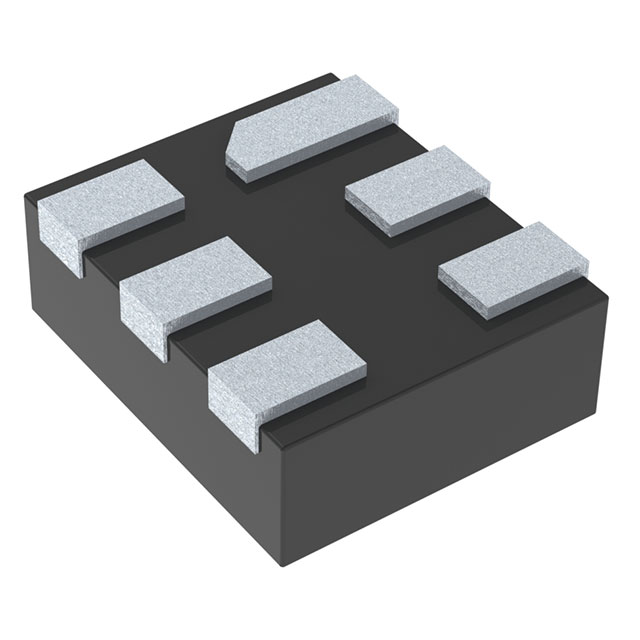

ON Semiconductor ESDR0502NMUTBG	Ethernet	6-UFDFN	3	Surface Mount	6-UDFN (1.2x1)		6 V	Steering	0.3 pF	100 W	-40 °C	125 ¯C	5.5 V
ON Semiconductor ESDR0502NMUTAG	Ethernet	6-UFDFN	3	Surface Mount	6-UDFN (1.2x1)		6 V	Steering	0.3 pF	100 W	-40 °C	125 ¯C	5.5 V

Catalog

Ultra-Low Capacitance ESD Protection Array for High Speed Data Lines

Key Features

• Low Capacitance (0.3 pF Typical Between I/O Lines and Ground)

• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model

• Protection for the Following IEC Standards: IEC 61000-4-2 8 kV (contact)

• UL Flammability Rating of 94 V-0

• These Devices are Pb-Free and are RoHS Compliant

Description

The ESDR0502N ultra low capacitance array is designed to protect high speed data lines from ESD. Ultra-low capacitance and high level of ESD protection makes this device well suited for use in USB 2.0 applications.
