892-046 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 46POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Contact Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Rows [custom]	Color	Features	Number of Positions/Bay/Row	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Pitch	Pitch	Termination Rows	Number of Rows
EDAC Inc. 892-046-555-212	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black	Card Extender	23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm
EDAC Inc. 892-046-556-204	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black	Card Extender	23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Solder	0.1 "	2.54 mm
EDAC Inc. 892-046-541-108		Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	0.25 Ám	10 Áin	Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Single		Black		46	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Wire Wrap	0.1 "	2.54 mm	1	1

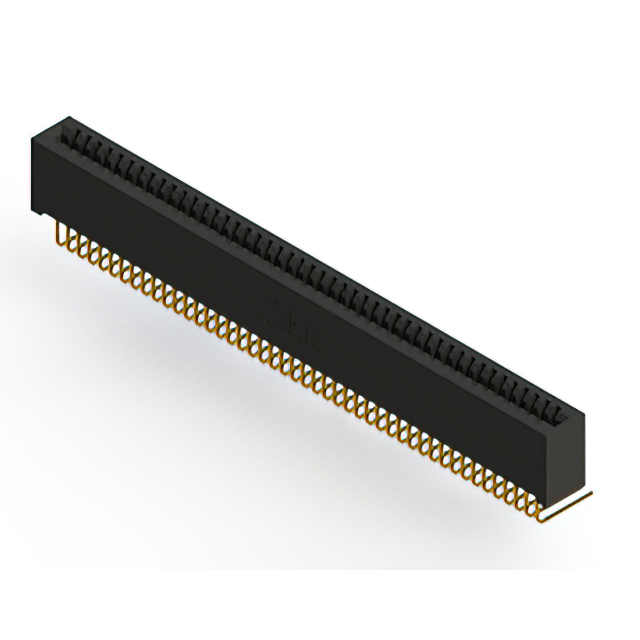

EDAC Inc. 892-046-558-101		Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	0.25 Ám	10 Áin	Right Angle Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Single		Black		46	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female				Solder	0.1 "	2.54 mm	1	1
EDAC Inc. 892-046-520-202	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black		23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm
EDAC Inc. 892-046-544-104		Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	0.25 Ám	10 Áin	Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Single		Black		46	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Wire Wrap	0.1 "	2.54 mm	1	1
EDAC Inc. 892-046-555-208	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black	Card Extender	23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Solder	0.1 "	2.54 mm
EDAC Inc. 892-046-520-207	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black		23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount M3 Threaded Insert Top Opening			Solder	0.1 "	2.54 mm

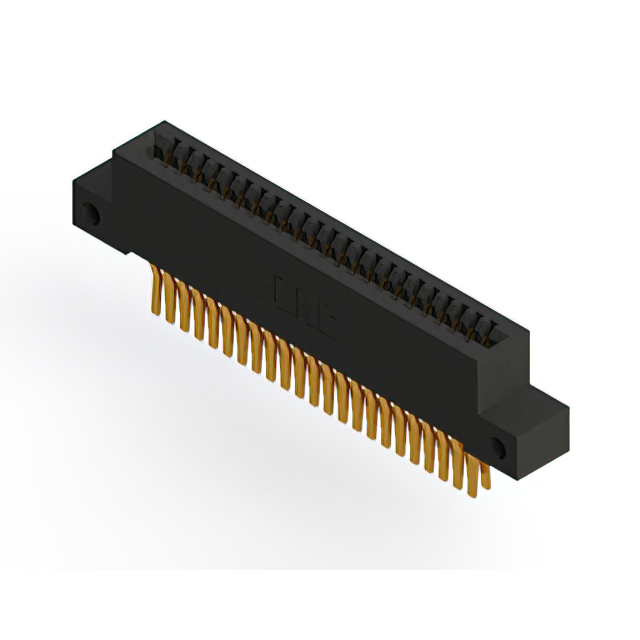

EDAC Inc. 892-046-560-212	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Dual	2	Black	Card Extender	23	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm
EDAC Inc. 892-046-520-108		Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	0.25 Ám	10 Áin	Through Hole	Copper Alloy	Cantilever	Gold	125 °C	-40 C	Single		Black		46	46	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Solder	0.1 "	2.54 mm	1	1
