3112-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

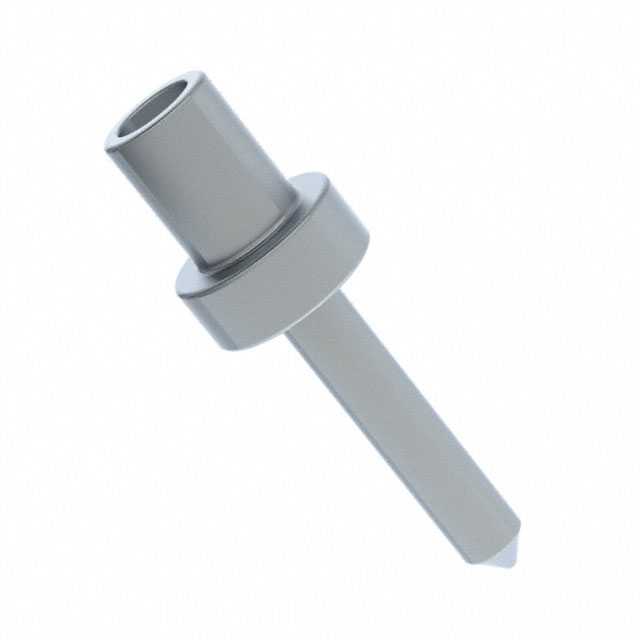

CONN PC PIN CIRC .024DIA TINLEAD
| Part | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Style | Board Thickness | Board Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [custom] | Length - Above Flange [custom] | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 1.57 mm | 0.062 in | PC Pin | 5.11 mm | 0.201 in | Tin-Lead | Single End | 0.79 mm | 0.031 in | 0.051 " | 1.3 mm | 200 Áin | 5.08 Ám | Non-Insulated | 0.043 in | 1.09 mm | 0.125 in | 3.18 mm | Through Hole | Swage |
 Mill-Max Manufacturing Corp. | Brass Alloy | 1.57 mm | 0.062 in | PC Pin | 5.11 mm | 0.201 in | Gold | Single End | 0.79 mm | 0.031 in | 0.051 " | 1.3 mm | 10 Áin | 0.25 Ám | Non-Insulated | 0.043 in | 1.09 mm | 0.125 in | 3.18 mm | Through Hole | Swage |
 Mill-Max Manufacturing Corp. | Brass Alloy | 1.57 mm | 0.062 in | PC Pin | 5.11 mm | 0.201 in | Tin | Single End | 0.79 mm | 0.031 in | 0.051 " | 1.3 mm | 200 Áin | 5.08 Ám | Non-Insulated | 0.043 in | 1.09 mm | 0.125 in | 3.18 mm | Through Hole | Swage |
Mill-Max Manufacturing Corp. | Brass Alloy | 1.57 mm | 0.062 in | PC Pin | 5.11 mm | 0.201 in | Gold | Single End | 0.79 mm | 0.031 in | 0.051 " | 1.3 mm | 50 µin | 1.27 µm | Non-Insulated | 0.043 in | 1.09 mm | 0.125 in | 3.18 mm | Through Hole | Swage |
