RZB40 Series

Catalog

CONN EDGE DUAL FMALE 80POS 0.050

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Features	Gender	Number of Rows [custom]	Mounting Type	Color	Contact Type	Number of Positions	Contact Finish	Termination	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Material	Read Out	Card Type

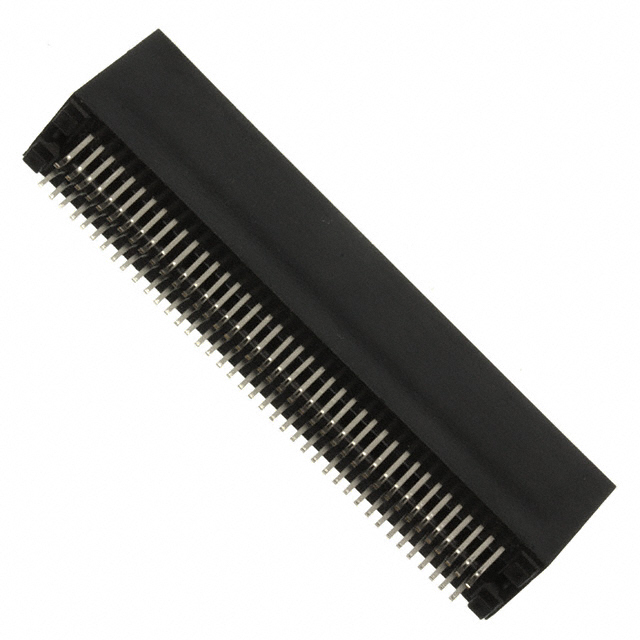

Sullins Connector Solutions RZB40DHRN	Polyphenylene Sulfide (PPS)	-65 ░C	125 °C	40	Card Extender	Female	2	Board Edge Straddle Mount	Black	Hairpin Bellows	80	Gold	Solder	1.57 mm	0.062 in	0.25 Ám	10 Áin	0.05 in	1.27 mm	Phosphor Bronze	Dual	Non Specified - Dual Edge
Sullins Connector Solutions RZB40DHHN	Polyphenylene Sulfide (PPS)	-65 ░C	125 °C	40		Female	2	Through Hole	Black	Hairpin Bellows	80	Gold	Solder Staggered	1.57 mm	0.062 in	0.25 Ám	10 Áin	0.05 in	1.27 mm	Phosphor Bronze	Dual	Non Specified - Dual Edge
