UB25RKG Series

Catalog

SWITCH PUSH BUTTON ON (ON) DPDT RECTANGULAR BUTTON 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS

Part	Mechanical Life	Electrical Life	Circuit	Mounting Type	Type	Actuator Type	Current Rating (Amps)	Features	Voltage Rating - DC	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Marking	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB25RKG03N-C	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Standard	Button Rectangular	0.4 VA	Spot LED	28 V	28 V	Red	PC Pin	-20 ░C	70 °C	On-Mom	No Marking

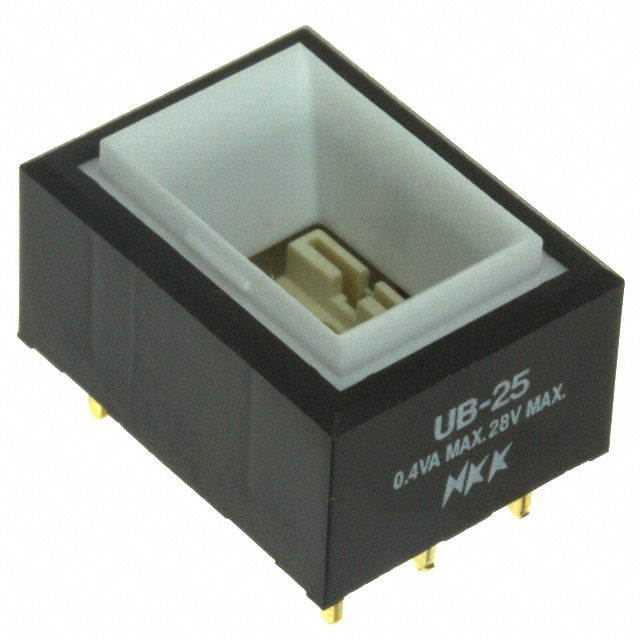

NKK Switches UB25RKG03N	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Standard	Plunger for Cap	0.4 VA	Spot LED	28 V	28 V		PC Pin	-20 ░C	70 °C	On-Mom	No Marking
NKK Switches UB25RKG035D-DD	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Illuminated Standard	Button Rectangular	0.4 VA	Spot LED	28 V	28 V	Amber	PC Pin	-25 °C	50 °C	On-Mom	No Marking	Amber LED	2 VDC
NKK Switches UB25RKG035C	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Illuminated Standard	Plunger for Cap	0.4 VA	Spot LED	28 V	28 V		PC Pin	-25 °C	50 °C	On-Mom	No Marking	LED Red	1.85 VDC
NKK Switches UB25RKG03N-B	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Standard	Button Rectangular	0.4 VA	Spot LED	28 V	28 V	White	PC Pin	-25 °C	70 °C	On-Mom	No Marking
NKK Switches UB25RKG035F-JB	1000000 Cycles	200000 Cycles	DPDT	Through Hole	Illuminated Standard	Button Rectangular	0.4 VA	Spot LED	28 V	28 V	Clear	PC Pin	-25 °C	50 °C	On-Mom	No Marking	Green LED	2.1 VDC
