ADC084 Series

Catalog

IC ADC 8BIT SAR 20DIP

Part	Reference Type	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface	Architecture	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Supplier Device Package	Input Type	Configuration	Number of Bits	Number of A/D Converters	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Number of Inputs	Sampling Rate (Per Second)	Package / Case [x]	Package / Case [x]	Ratio - S/H:ADC	Sampling Rate (Per Second)
Texas Instruments ADC0844CCN/NOPB	External	Through Hole	4.5 V	6 V	Parallel	SAR	4.5 V	6 V	20-PDIP	Differential Pseudo-Differential Single Ended	MUX-ADC	8	1	70 °C	0 °C	20-DIP	7.62 mm	0.3 in	4	25 k

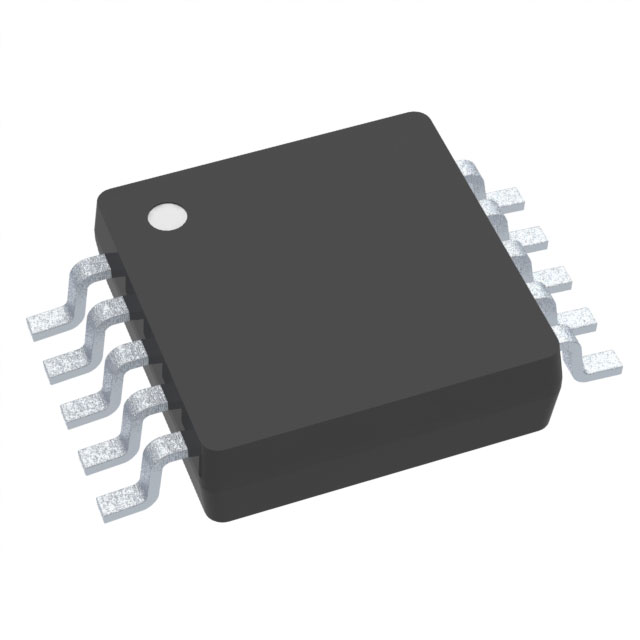

Texas Instruments ADC084S101CIMMX/NOPB	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4	1 M	3 mm	0.118 in	1:1
Texas Instruments ADC084S051CIMMX/NOPB	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4		3 mm	0.118 in	1:1	500k
Texas Instruments ADC0848CCVX	External	Surface Mount	4.5 V	6 V	Parallel	SAR	4.5 V	6 V	28-PLCC (11.51x11.51)	Differential Pseudo-Differential Single Ended	MUX-ADC	8	1	85 °C	-40 °C	28-LCC (J-Lead)			4 8	25 k
Texas Instruments ADC0848BCVX	External	Surface Mount	4.5 V	6 V	Parallel	SAR	4.5 V	6 V	28-PLCC (11.51x11.51)	Differential Pseudo-Differential Single Ended	MUX-ADC	8	1	85 °C	-40 °C	28-LCC (J-Lead)			4 8	25 k
Texas Instruments ADC084S021CIMMX	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4		3 mm	0.118 in	1:1	200k
Texas Instruments ADC0848CCN	External	Through Hole	4.5 V	6 V	Parallel	SAR	4.5 V	6 V	24-DIP	Differential Pseudo-Differential Single Ended	MUX-ADC	8	1	70 °C	0 °C	24-DIP	7.62 mm	0.3 in	4 8	25 k
Texas Instruments ADC084S051CIMM	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4		3 mm	0.118 in	1:1	500k
Texas Instruments ADC084S101CIMM	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4	1 M	3 mm	0.118 in	1:1
Texas Instruments ADC084S021CIMM	Supply	Surface Mount	2.7 V	5.25 V	DSP SPI	SAR	2.7 V	5.25 V	10-VSSOP	Single Ended	MUX-S/H-ADC	8	1	85 °C	-40 °C	10-MSOP 10-TFSOP			4		3 mm	0.118 in	1:1	200k
