19398240 Series
Manufacturer: HARTING
Beta
⌘K

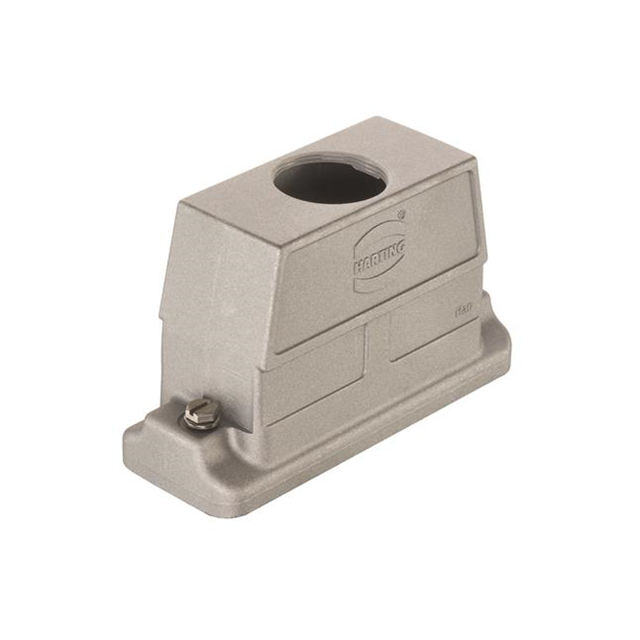

HAN 24 HP DIRECT EMC HOOD, TOP ENTRY, M40
| Part | Connector Type | Size | Housing Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Housing Finish | Style | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Hood | 24 B | Aluminum Die Cast | IP66 IP68 IP69K | 125 °C | -40 C | 6.024 in | 3.701 " | 153 mm | 57 mm | 94 mm | 2.244 " | EMC Coating | Top Entry | Screw Locks on Hood |
