9043-9523 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

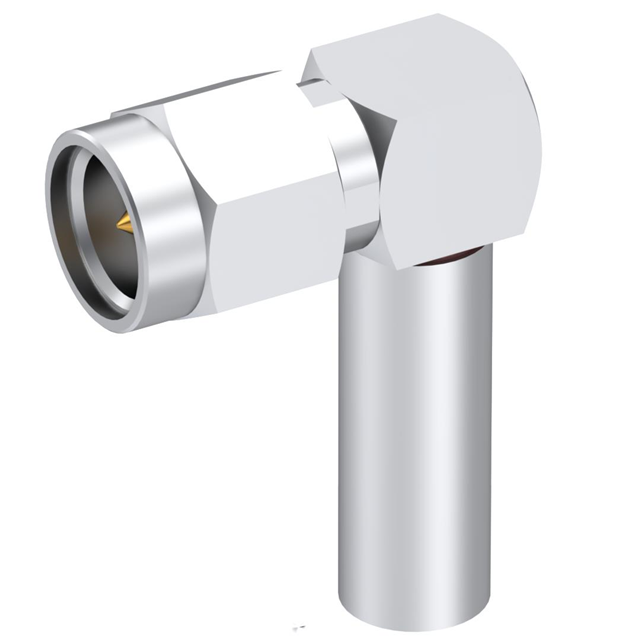

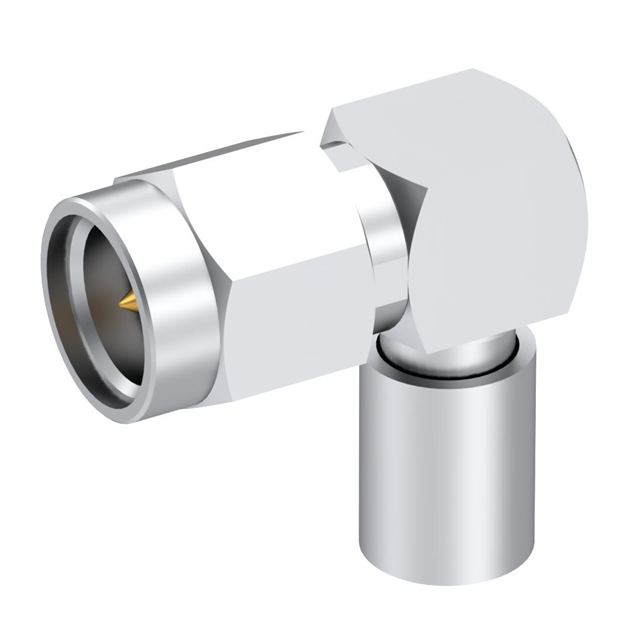

SMA / RIGHT ANGLE PLUG MALE CRIM
| Part | Dielectric Material | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Frequency - Max [Max] | Connector Style | Cable Group | Connector Type | Center Contact Material | Housing Color | Number of Ports | Shield Termination | Mounting Type | Fastening Type | Impedance | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 335 V | -65 ░C | 165 °C | Gold | 500 | 12.4 GHz | SMA | 142 223 RG-55 | Plug Male Pin | Beryllium Copper | Silver | 1 | Crimp | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | Crimp | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | 500 | 18 GHz | SMA | RD-178 196 Double Braid | Plug Male Pin | Beryllium Copper | Silver | 1 | Crimp | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | Crimp | ||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 250 V | -65 ░C | 165 °C | Gold | 500 | 18 GHz | SMA | RG-174 | Plug Male Pin | Beryllium Copper | 1 | Crimp | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | Crimp | 316 | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | 500 | 12.4 GHz | SMA | RG-178 | Plug Male Pin | Beryllium Copper | Silver | 1 | Crimp | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | Crimp | 196 | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 250 V | -65 ░C | 165 °C | Gold | 500 | 12.4 GHz | SMA | RG-316 Double Braid | Plug Male Pin | Beryllium Copper | Silver | 1 | Crimp | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | Crimp |
