R18501 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

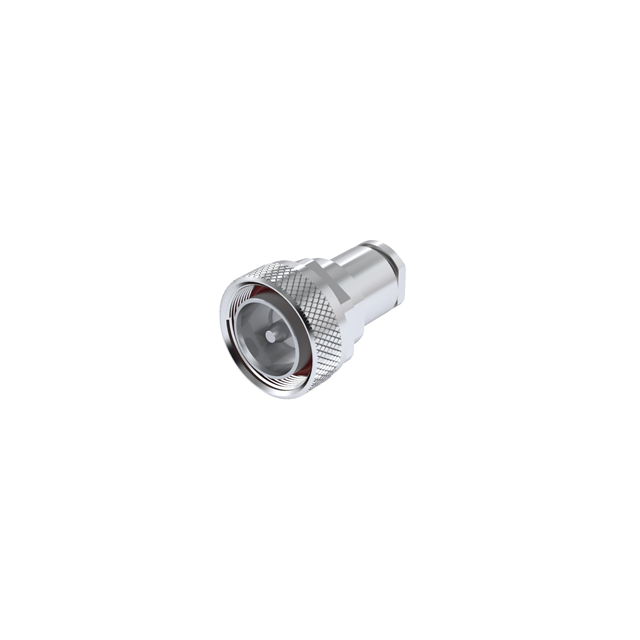

7-16 / STRAIGHT PLUG CLAMP TYPE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Material | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Number of Ports | Cable Group | Center Contact Material | Mounting Type | Frequency - Max [Max] | Contact Termination | Impedance | Ingress Protection | Shield Termination | Connector Type | Housing Color | Connector Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Silver | Brass | Polytetrafluoroethylene (PTFE) | 500 | 1400 V | White Bronze | 1 | 214 225 RG-213 | Brass | Free Hanging (In-Line) | 7.5 GHz | Solder | 50 Ohms | IP67 - Dust Tight Waterproof | Clamp | Plug Male Pin | Silver | 7/16 DIN | Threaded |
 Radiall USA, Inc. | 155 C | -55 C | Silver | Brass | Polytetrafluoroethylene (PTFE) | 500 | 1400 V | White Bronze | 1 | 214 225 RG-213 | Brass | Free Hanging (In-Line) | 7.5 GHz | Solder | 50 Ohms | IP67 - Dust Tight Waterproof | Clamp | Plug Male Pin | Silver | 7/16 DIN | Threaded |
