QPDF-600 Series
Manufacturer: Qualtek
Beta
⌘K

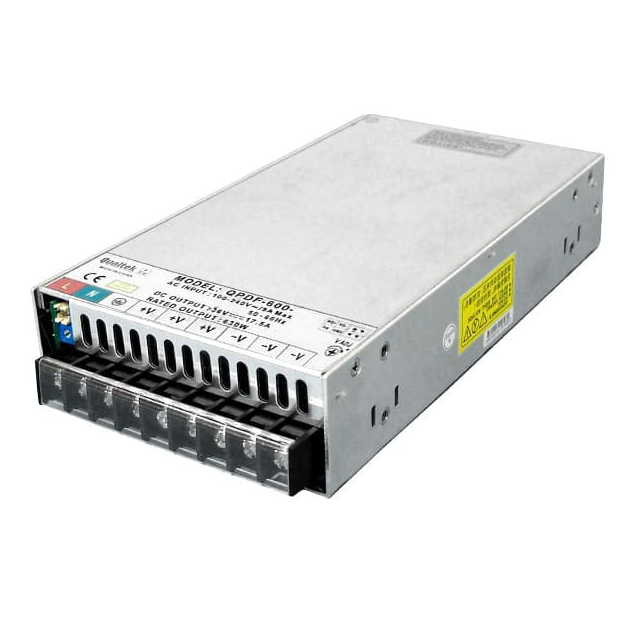

AC/DC CONVERTER 36V 600W
| Part | Applications | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 [custom] | Mounting Type | Approval Agency | Features | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Type | Efficiency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | ITE (Commercial) | 17.5 A | -30 °C | 70 °C | 600 W | 264 VAC | 90 VAC | 36 V | Chassis Mount | CB CE cURus | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | 1 | 116.5 mm | 4.59 " | 42.5 mm | 218 mm | 8.58 in | 1.67 in | 3000 V | Enclosed | 90 % | |
 Qualtek | ITE (Commercial) | 42 A | -30 °C | 70 °C | 600 W | 264 VAC | 90 VAC | Chassis Mount | CB CE cURus | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | 1 | 116.5 mm | 4.59 " | 42.5 mm | 218 mm | 8.58 in | 1.67 in | 3000 V | Enclosed | 88 % | 12 V | |
Qualtek | ITE (Commercial) | 26.5 A | -30 °C | 70 °C | 600 W | 264 VAC | 90 VAC | Chassis Mount | CB CE cURus | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | 1 | 116.5 mm | 4.59 " | 42.5 mm | 218 mm | 8.58 in | 1.67 in | 3000 V | Enclosed | 89 % | 24 V |
