VBI100 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

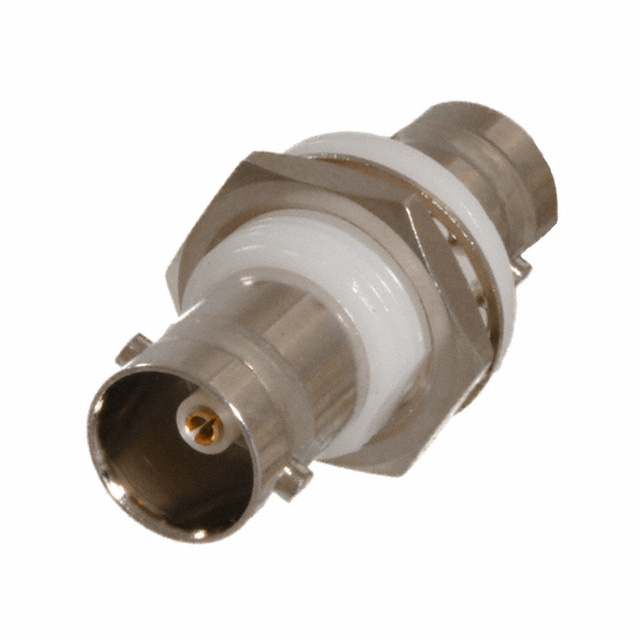

CONN ADAPT JACK-JACK BNC 75 OHM
| Part | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Center Contact Material | Body Material | Mating Cycles | Convert From (Adapter End) | Features | Frequency - Max [Max] | Fastening Type | Center Gender | Style | Adapter Type | Center Contact Plating | Convert To (Adapter End) | Mounting Feature | Conversion Type | Adapter Series | Impedance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | 1 Connector 1 Lockwasher 1 Nut | -55 C | 85 °C | Nickel | Polyoxymethylene (POM) Acetal | Phosphor Bronze | Brass | 500 | BNC Jack Female Socket | Isolated | 1 GHz | Bayonet Lock | Female to Female | Straight | Jack to Jack | Gold | BNC Jack Female Socket | Bulkhead | Same Series | BNC to BNC | 75 Ohms | Panel Mount |
 Cinch Connectivity Solutions | 1 Connector 1 Lockwasher 1 Nut | -55 C | 85 °C | Nickel | Polyoxymethylene (POM) | Brass | Brass | 500 | BNC Jack Female Socket | Isolated | 4 GHz | Bayonet Lock | Female to Female | Straight | Jack to Jack | Gold | BNC Jack Female Socket | Bulkhead | Same Series | BNC to BNC | 50 Ohms | Panel Mount |
